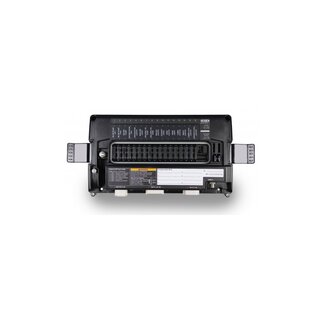

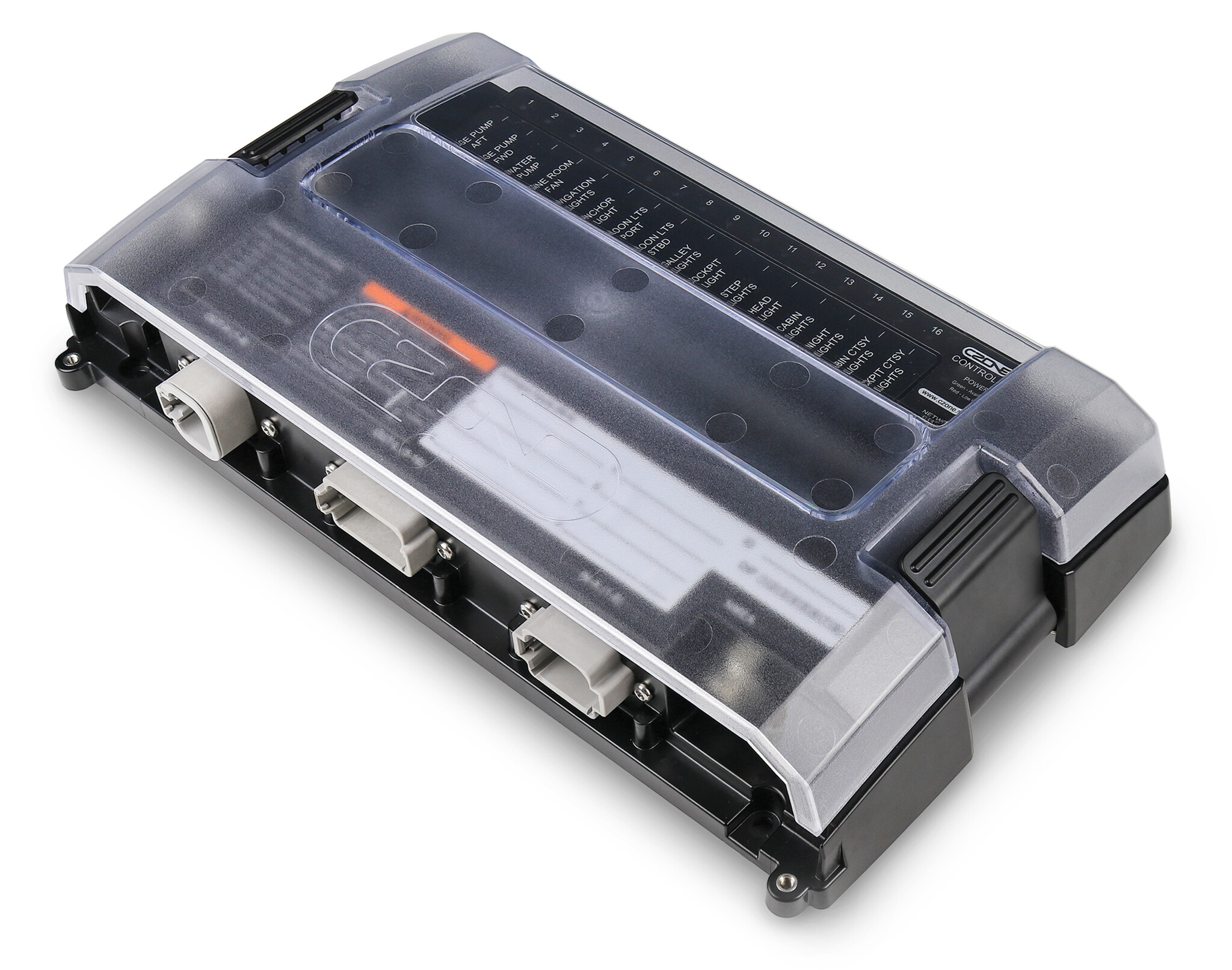

CZone® Control 1: Streamlining Marine Electrical Systems


When it comes to marine electrical systems, efficiency and simplicity are key. That's where the CZone® Control 1 comes in. This innovative module combines multiple input and output devices into a single unit, reducing installation time, interconnections, and footprint. Designed for marine, recreational, and specialty vehicle applications, the Control 1 offers improved cost-per-channel value compared to its predecessors.

One of the standout features of the Control 1 is its rugged design. With IPX5 water ingress protection and complete mechanical fuse and bypass on all circuits as required by ABYC/CE standards, this module can withstand even the harshest marine environments. Its industry-standard Deutsch connectors also ensure hassle-free "plug and play" installation.

The Control 1 boasts a high-density 24-channel module that delivers reduced cost per channel without compromising performance. It retains many of the core functions available in the fully featured Combination Output Interface (COI), making it a versatile choice for various electrical applications.

In addition to its core features, the Control 1 integrates manual bilge pump control and pump running detection. This functionality adds an extra layer of convenience and safety to your marine electrical system.

Let's take a closer look at some of the technical specifications of the Control 1:

Channels:
- Output Channels High: 24 (4x 25A)
- Output Channels Low: 12 x 10A dimmable
- Analog Inputs: 8x analog inputs for positive or negative switching with options for voltage range (0–32 volt), resistance range (0–1000 ohm), and current range (4–20mA)

Circuit Protection:
- Mechanical ATC fuse override with alarm
- Mechanical protection/bypass on all output channels

Power Supply:
- Voltage Range: 9–32V
- Power Consumption: Operating (all channels on) = 100mA @ 13.2V, Operating (all channels off) = 75mA @ 13.2V

Bilge Pump Circuits:
- Integrated manual control and pump running detection for 4x high output channels

Ingress Protection:
- IPX5 water ingress protection when mounted at 0°, +/-90°

Certification:
- CE, ABYC, NMEA 2000, ISO8846/SAEJ1171 ignition protected
- NMEA 2000 PGN Output: Fluid level, pressure, temperature, battery volts

Dimensions and Weight:
- Dimensions (including cover): 13.3" x 9.3" x 2.4" (338 x 235 x 62mm)
- Weight: 4.2lb / 1.9kg

To complete your Control 1 installation, you may also consider the optional Deutsch connector kit (part #80-911-0131-00). This kit includes all necessary plugs, contacts, wafers, and seals to ensure a seamless connection.

With its compact design and comprehensive features, the CZone® Control 1 is an excellent choice for marine enthusiasts looking to simplify their electrical systems without compromising functionality or durability. Whether you're outfitting a boat or specialty vehicle, the Control 1 offers exceptional value and performance in one convenient package.

Invest in the Control 1 today and experience the benefits of streamlined electrical control in your marine adventures.
