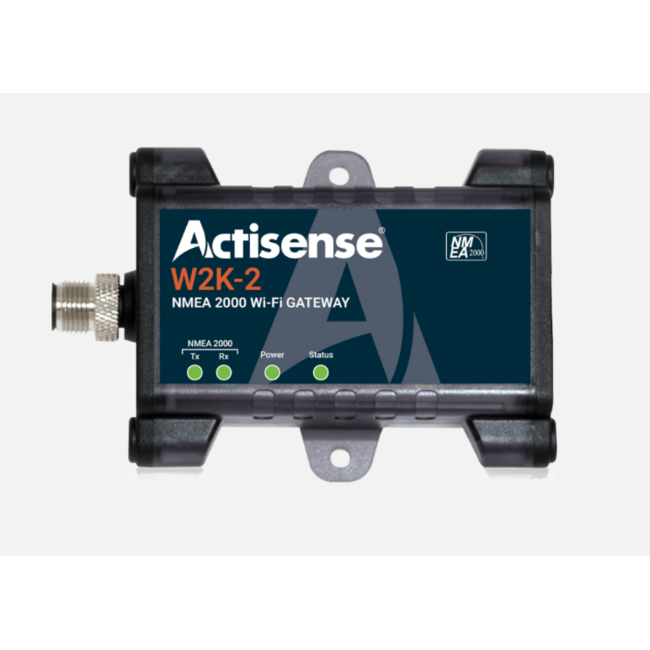

The Actisense W2K-2 NMEA 2000® to Wi-Fi Gateway streams NMEA 2000 data wirelessly and converts to NMEA 0183. Includes data logging, WPA3 security and IP67 housing. Read more.
The Actisense W2K-2 NMEA 2000® to Wi-Fi Gateway enables seamless wireless access to vessel data from an NMEA 2000 backbone. Designed for professional marine environments, it streams NMEA 2000 data to laptops, tablets and smartphones via Wi-Fi.
The built-in conversion engine translates NMEA 2000 messages into NMEA 0183 sentences, ensuring compatibility with a wide range of navigation software and applications. The device supports both TCP and UDP protocols and can stream data through up to three separate servers.
Voyage data can be logged to an internal micro SD card (up to 128 GB, not included) for post-trip analysis. This makes it ideal for race data review, logbook generation and system diagnostics.
The W2K-2 operates on 9–30V DC via the NMEA 2000 port and has a load equivalent number (LEN) of 2. It features IEEE 802.11 b/g/n connectivity (2.4 GHz, up to 150 Mbps), an integrated 3.4 dBi internal antenna and WPA/WPA2/WPA3 security support.
Housed in a rugged IP67 enclosure, the gateway includes diagnostic LEDs and automatic NMEA 2000 bus voltage monitoring.
The Actisense W2K-2 provides a robust and flexible solution for modern marine network integration. Order now from Nauticsale for fast delivery and expert support.
