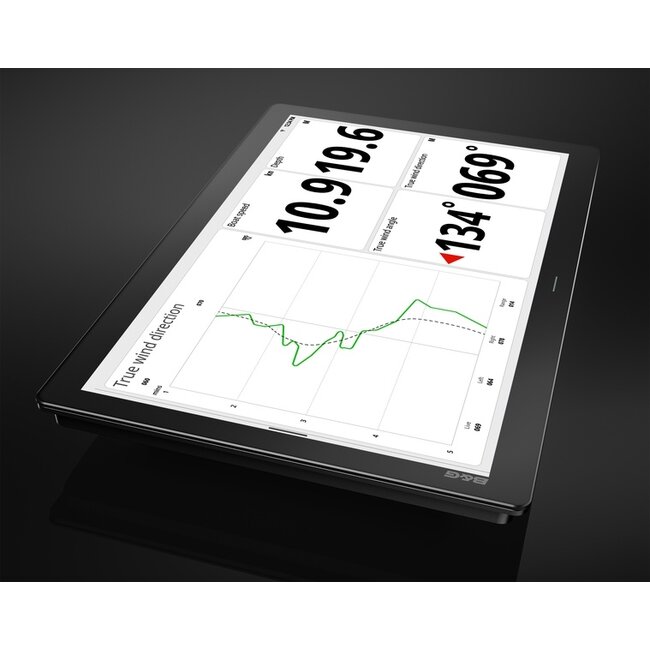

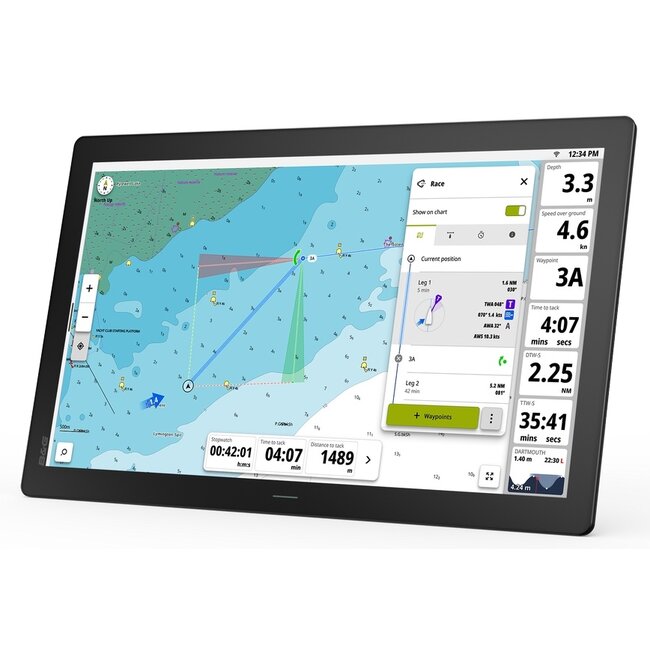

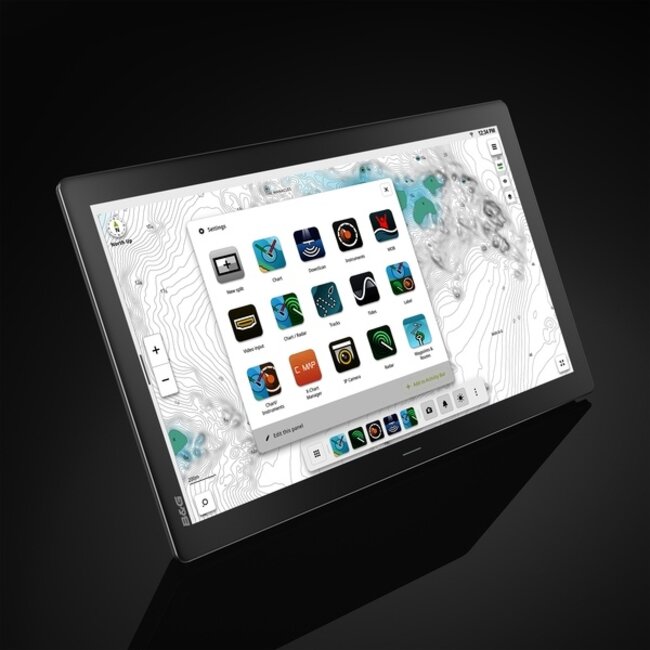

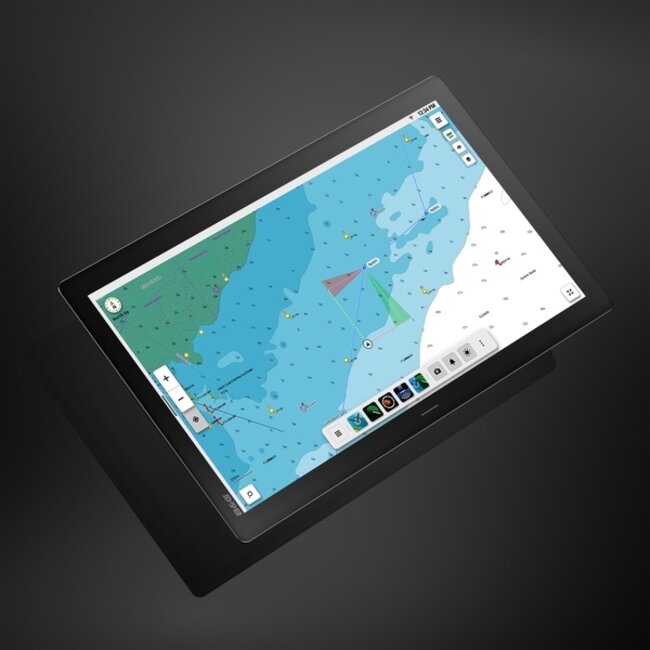

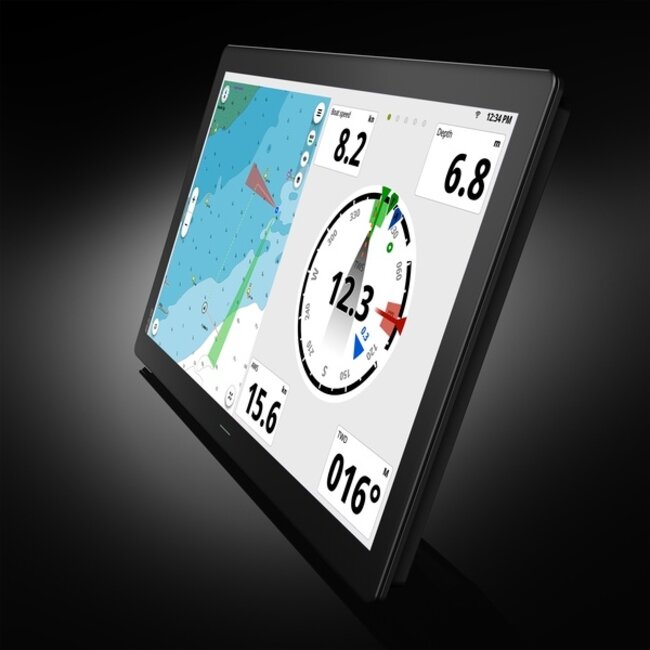

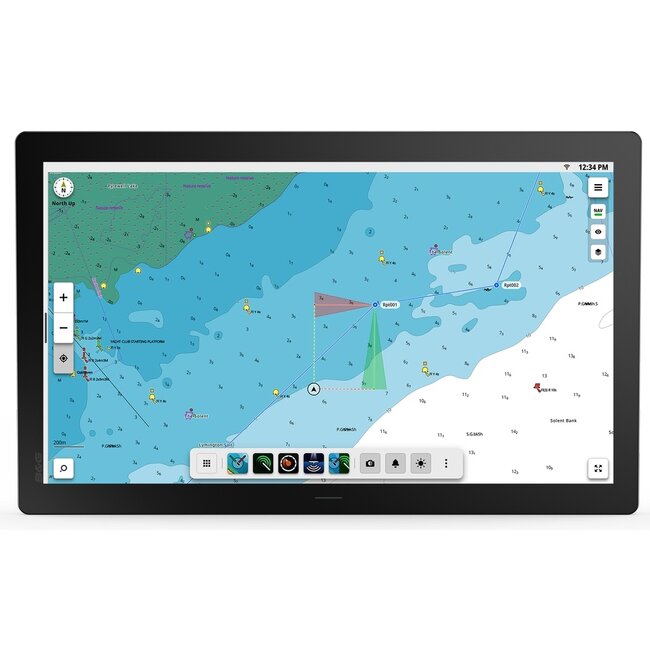

The B&G Zeus® SRX 22” multifunction sailing chartplotter features a Full HD SolarMAX™ IPS display (1920 x 1080) with 1200 nits brightness for sunlight readability.
Powered by a Qualcomm 8155 8-core processor and running NEON® OS, it delivers fast boot times, instantaneous chart redraw and seamless page transitions.
Premium Helm Installation

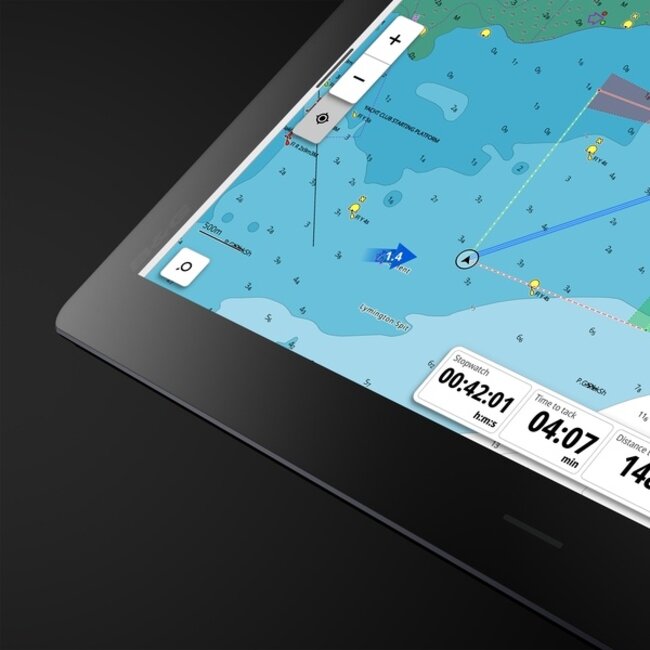

- Edge-to-edge glass design
- Patented tool-less rear mount system
- Designed for premium teak helm installations
- Rugged waterproof design with twist-lock connectors
Advanced System Integration
- Compatible with B&G autopilots (NAC-1, NAC-2, NAC-3, NAC-D)
- HALO radar integration
- NMEA 2000 networking,
- CZONE digital switching
- Supports up to 12 NEON displays
- View up to 4 IP camera feeds simultaneously
- HD Video In & Out with integrated audio splitter
External GPS antenna required (NMEA 2000).
HS75 GPS Compass
ZG100 GPS Antenna
Chart Support
- C-MAP DISCOVER® X
- C-MAP REVEAL® X
- Safety Alerts
- Wireless chart management via X Chart Manager
Key Technical Specifications
- Display: 22” IPS Full HD
- Resolution: 1920 x 1080
- Brightness: 1200 nits
- Processor: Qualcomm 8155 8-Core
- Internal storage: 128GB
- Power consumption: 52W
- Dimensions: 523 x 321 mm
- Weight: 5.76 kg
- Operating temp: -15°C to 55°C
What’s in the Box
- Zeus SRX 22” MFD
- Magnetic sun cover
- Rear mount kit and dash gasket
- Power cable
- Documentation pack
