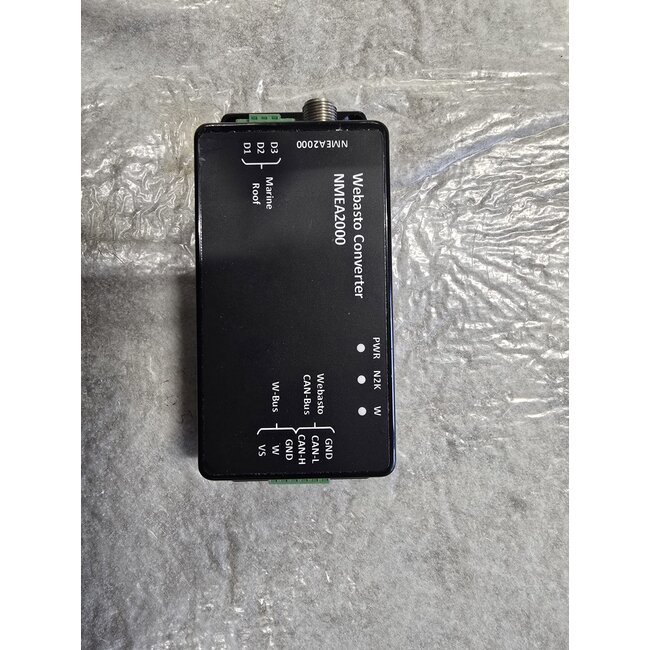

The Webasto Converter NMEA 2000 is an interface designed to integrate Webasto systems into a NMEA 2000 network. It converts internal Webasto communication into standardized NMEA 2000 data, enabling control and monitoring via multifunction displays.

This interface is used to connect systems such as air conditioning units, heaters, and marine roof solutions, allowing centralized control within a single onboard network.

The converter is powered directly via the NMEA 2000 network and connects to both the NMEA backbone and Webasto systems via CAN-Bus and W-Bus interfaces. This ensures reliable and seamless integration with modern marine electronics.

Features and options

• Interface for integrating Webasto systems into NMEA 2000 networks
• Converts Webasto communication into NMEA 2000 data
• Enables control and monitoring via MFD displays
• Connections for NMEA 2000, CAN-Bus, and W-Bus
• Suitable for air conditioning, heaters, and marine roof systems
• Powered via NMEA 2000 network
• Supports multiple NMEA 2000 PGNs

Technical specifications

• Operating voltage: 6 – 18 V
• Current consumption: max. 100 mA
• LEN: 2 (NMEA 2000)
• Dimensions: 138 x 62 x 32 mm
• Weight: 0.126 kg
• Operating temperature: -25°C to +55°C

With the Webasto Converter NMEA 2000, you can seamlessly integrate your Webasto system into your onboard network for full control and monitoring. Order now at Nauticsale for fast delivery and expert advice.
