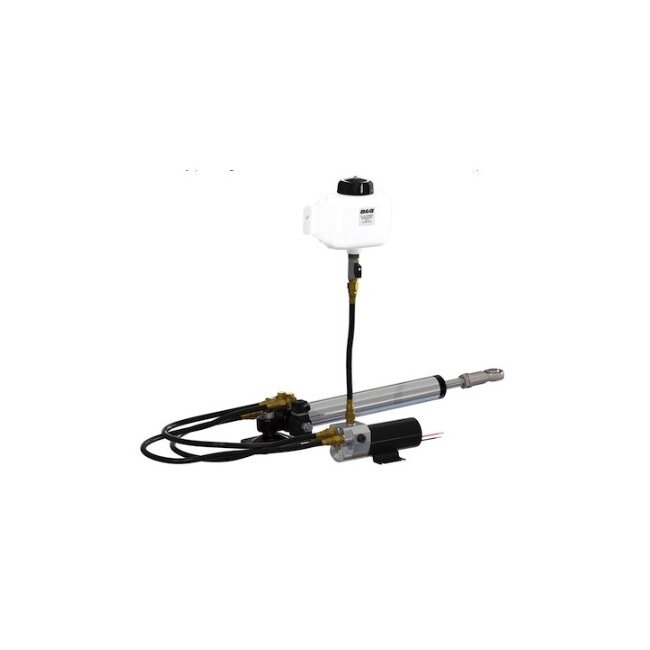

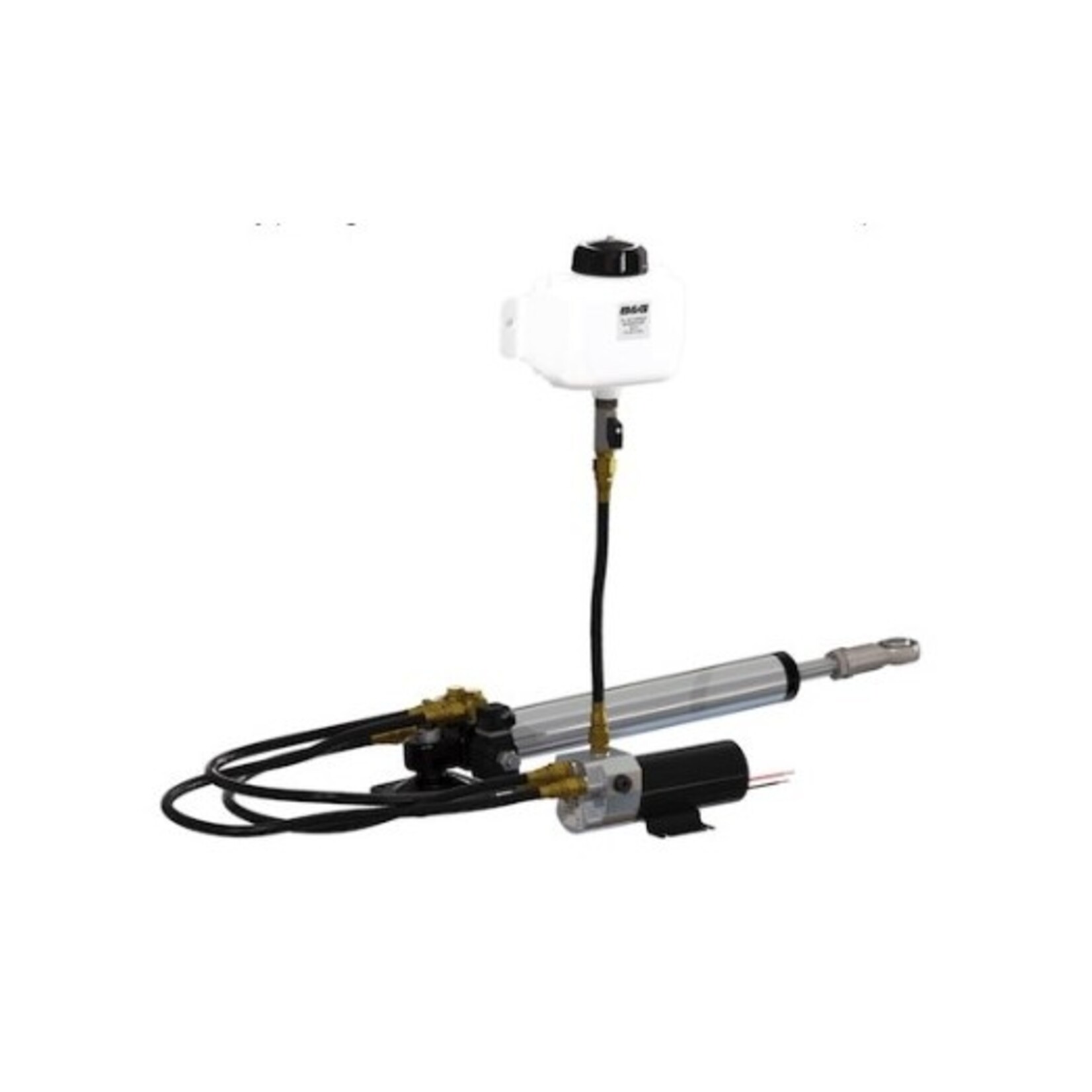

The Hydraulic Ram T3 24V is a compact, fully integrated hydraulic steering drive that combines cylinder, clutch, reversing pump, and reservoir in one unit. Designed for under-deck installation, it delivers high thrust with efficient power consumption. The solenoid clutch engages the cylinder for smooth and powerful steering, while built-in relief valves protect the system from overload.

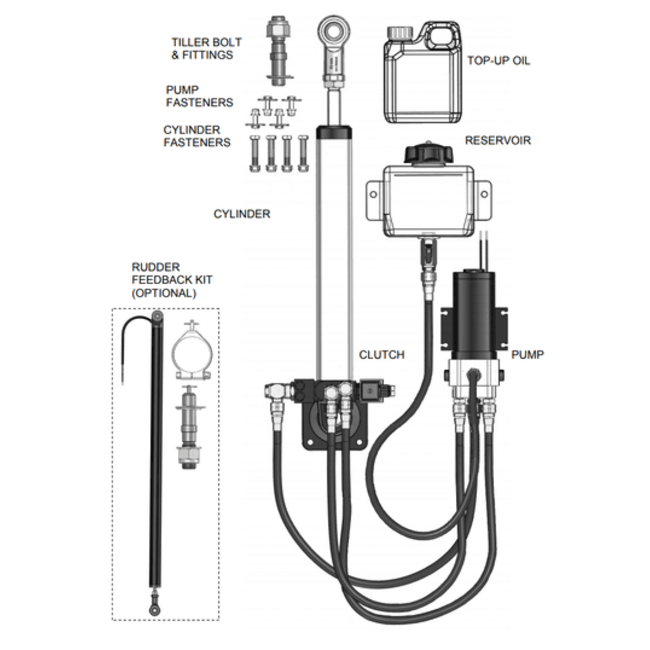

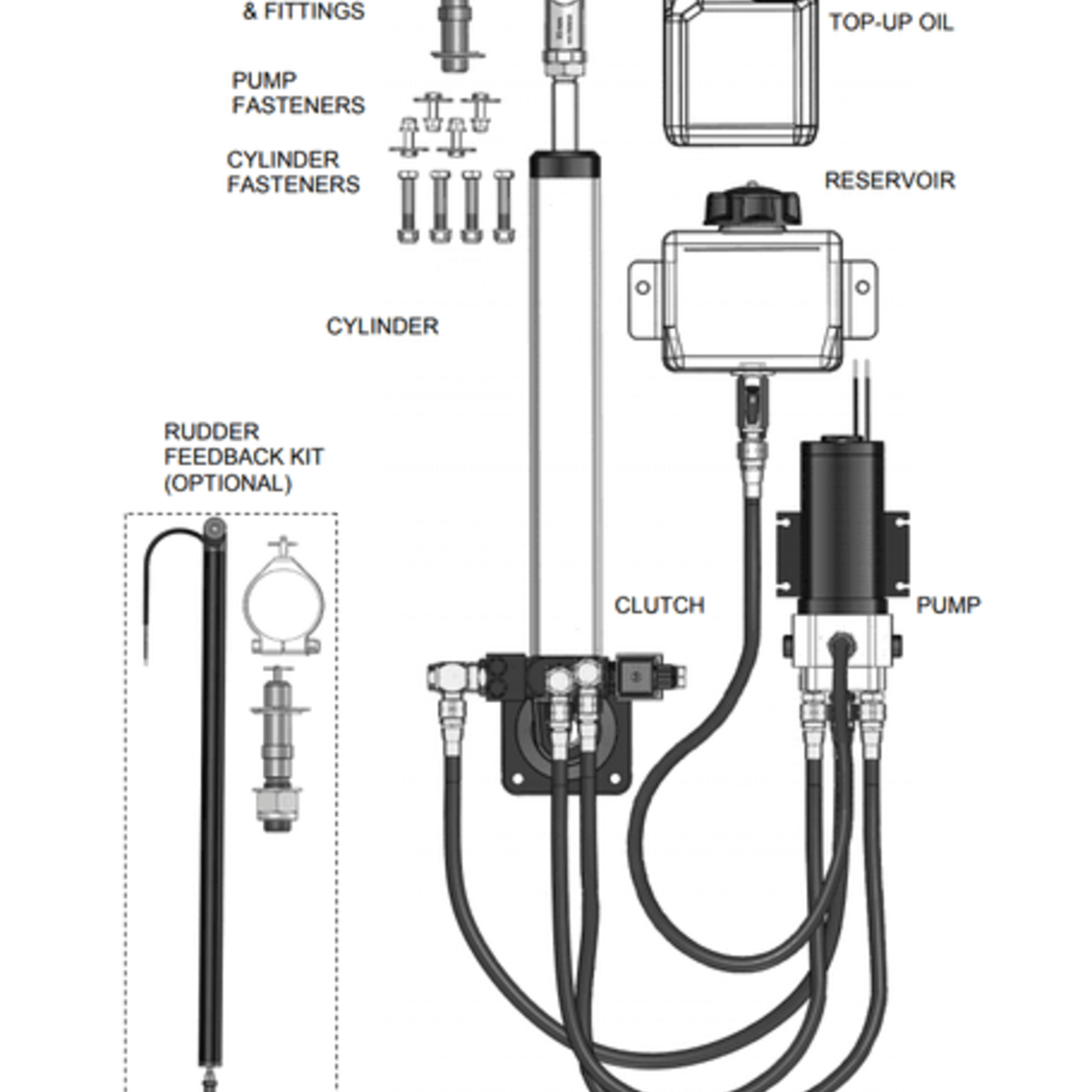

This integrated unit allows the autopilot’s Power Steer Mode to be used in case of manual steering failure. Built with robust aluminium and stainless steel components, the drive comes pre-assembled and pre-filled with hydraulic fluid. Mounting hardware is included, and an optional rudder feedback unit is available.

Key features:

• Integrated cylinder, clutch, pump, and reservoir
• Nominal cylinder volume: 538 cc, stroke 305 mm
• Max thrust: 10,980 N at 55 bar
• Hard-over time: 13 sec
• IP65-rated clutch protection
• Operating temperature: -20°C to +65°C
• Relief valve setting: 62 bar (12,400 N)
• 24V DC solenoid (12 W continuous)
• Weight: 14 kg
• Low-maintenance design with nitrile/PTFE seals
• Optional rudder feedback unit (P/N R4104)

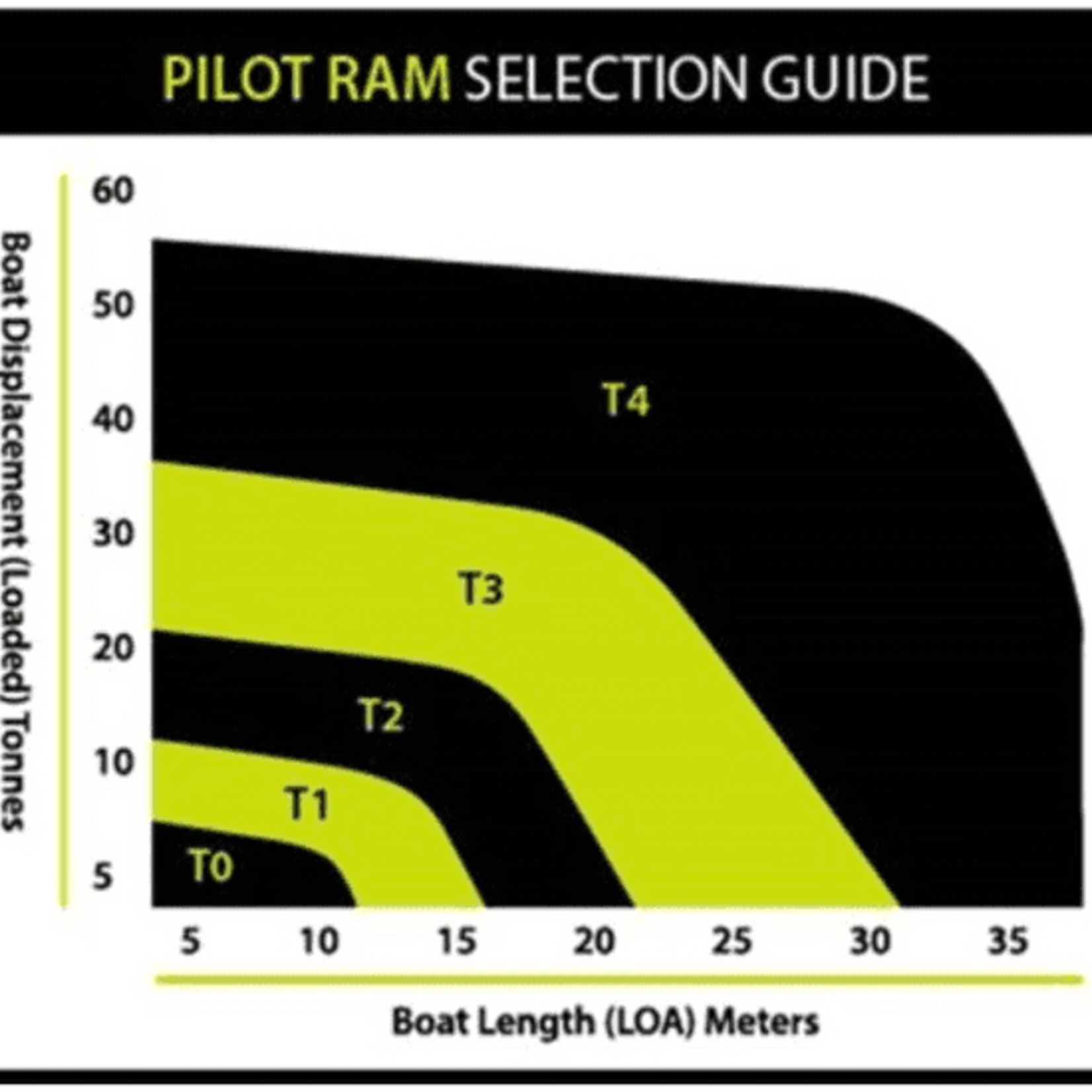

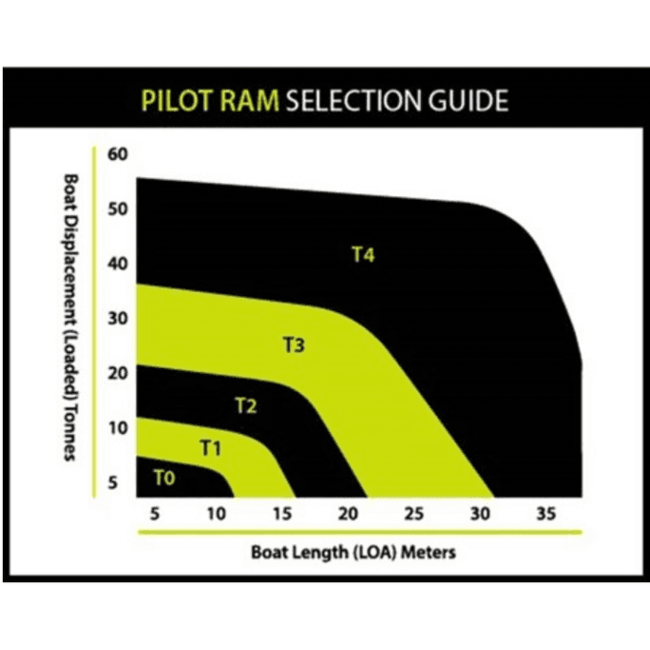

Applications: For under-deck installation in vessels with hydraulic steering systems, in combination with B&G or Simrad autopilots.

  RAM T3 User Manual (en-us)
