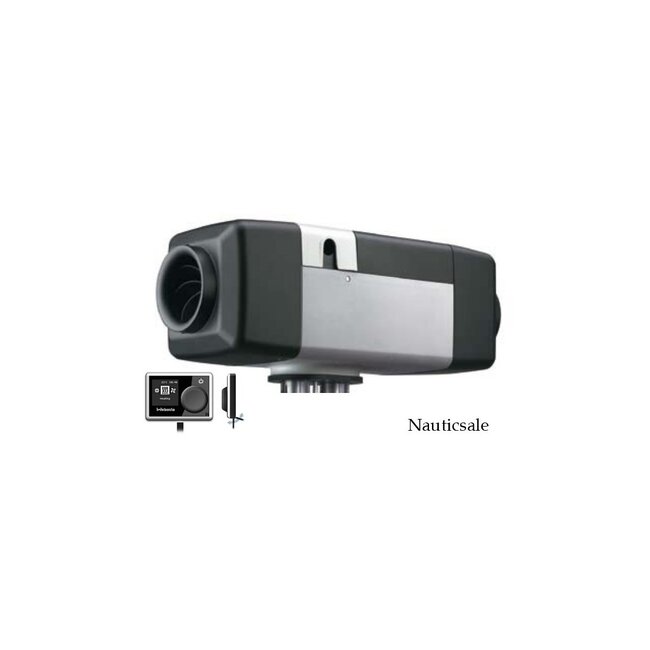

Air Top Evo 55 – for extreme conditions

Extremely powerful, compact and quiet, this heater ensures a comfortable climate for larger yachts even under the harshest conditions, and satisfies the most demanding requirements. It can be upgraded with the new multi mode
user interface to offer additional operation modes depending on individual heating requirements. Two Air Top heaters can be combined into one system for increased heating demand (up to 11 kW). The whole system can be
operated via one central user interface.

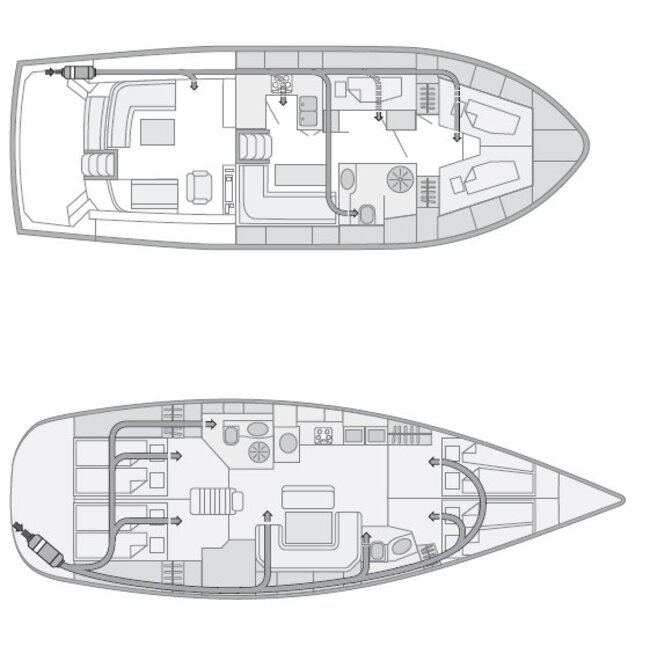

Each of this five cabin yacht has an individual air outlet. The air duct to the salon as well as the front should have at least 80 mm Ø to ensure a good air flow and one of the outlets should be non-closable. The fresh air is taken in via the rear locker from outside. With the heater in the engine compartment, the fuel supply system must be designed to be fire-resistant. The air outlet to the salon has to be non- closable. Air outlets for the other cabins or the head compartment may be closable to enable individual heat regulation.

The advantages of the
Air Top Evo 55:
■ 5.5 kW power for fast heating
■ Very low electrical power
consumption due to new
Intelligent Blower Control
■ Automatic cold start function
for quick warm-up
■ Improved air intake silencer
■ Vibration dampers for fuel line

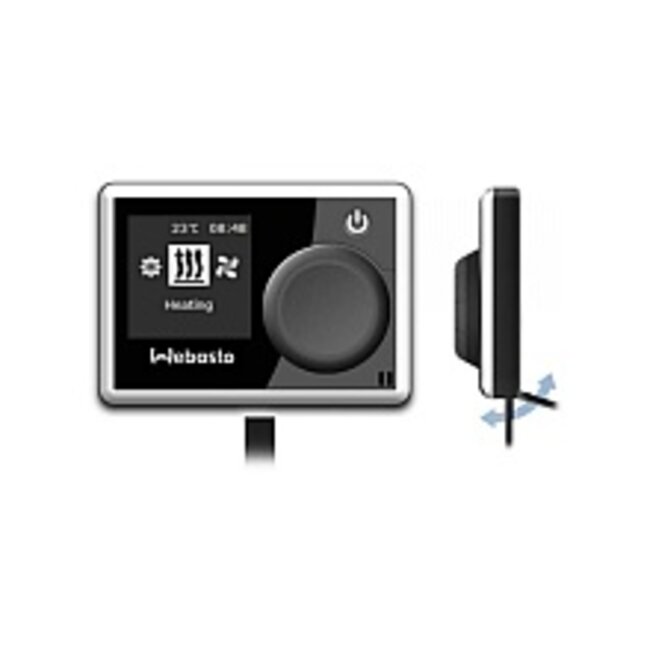

■ Compatible to MultiControl
digital user interface
■ Very silent operation due to
lower blower speed and silent
fuel pump (DP42)
