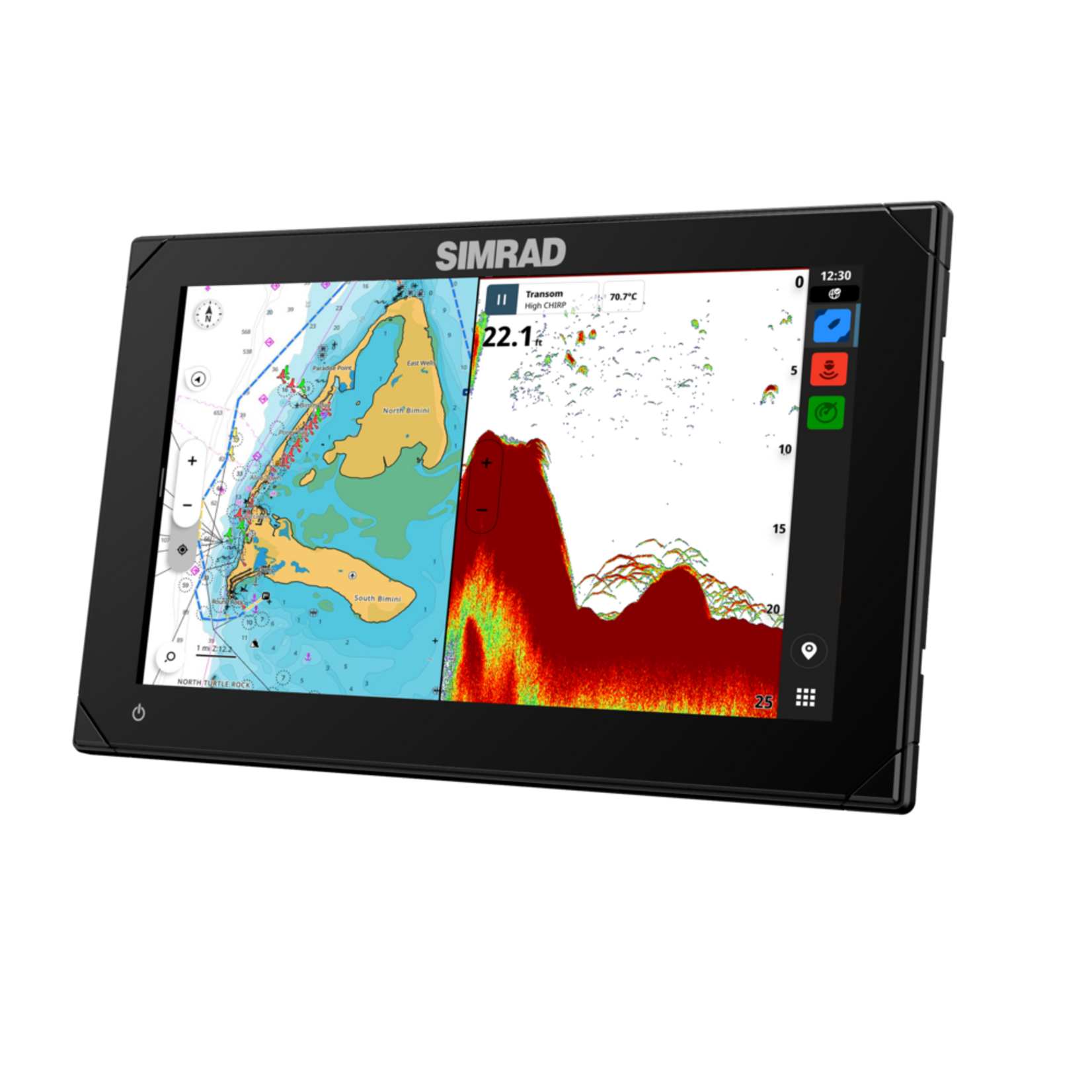

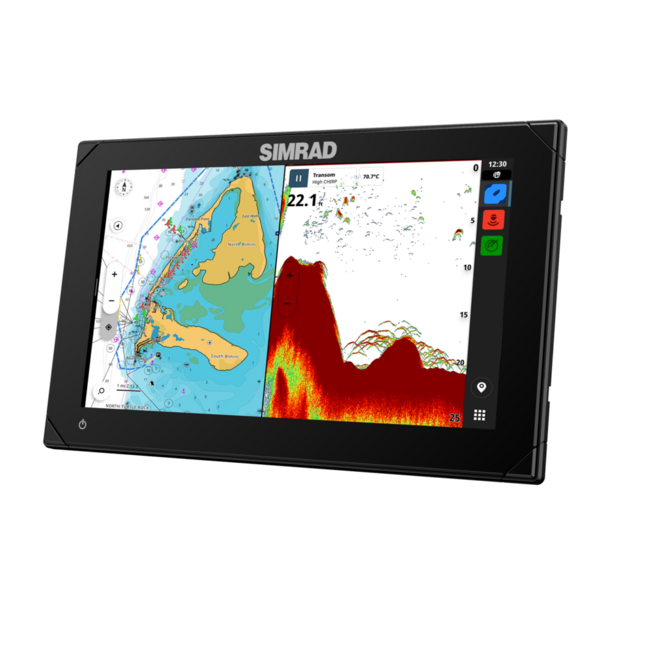

The Simrad NSX 3009 chartplotter with Active Imaging 3-in-1 transducer is designed for boaters who demand full control, clarity and seamless system integration onboard. This multifunction display forms the core of a modern Simrad navigation system and is suitable for a wide range of leisure and fishing applications.
The Simrad NSX 3009 chartplotter with Active Imaging 3-in-1 transducer integrates effortlessly with the complete Simrad electronics suite. From a single display, users can access navigation, sonar, radar, engine data and onboard systems. When combined with Simrad HALO® radars, Simrad autopilot systems and compatible sonar modules, NSX delivers a clear and intuitive helm experience.
With sonar sharing, sonar data can be shared between multiple Simrad MFDs onboard. The NSX 3009 also supports external sonar modules such as StructureScan, S3100 and S5100, providing enhanced underwater views and improved target separation.
Enhanced third-party integration extends functionality beyond Simrad products. The NSX platform supports Mercury® engines via Mercury SmartCraft® Connect, enabling VesselView®, Active Trim and cruise control features, displayed clearly alongside navigation data.

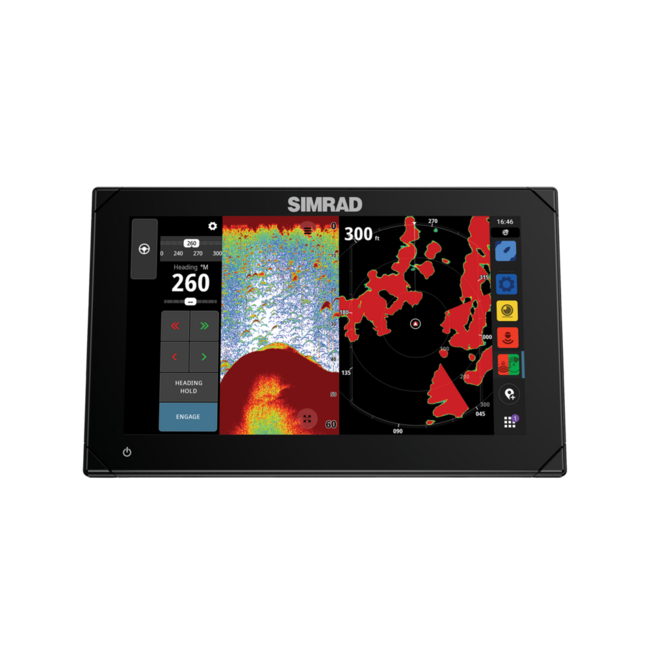

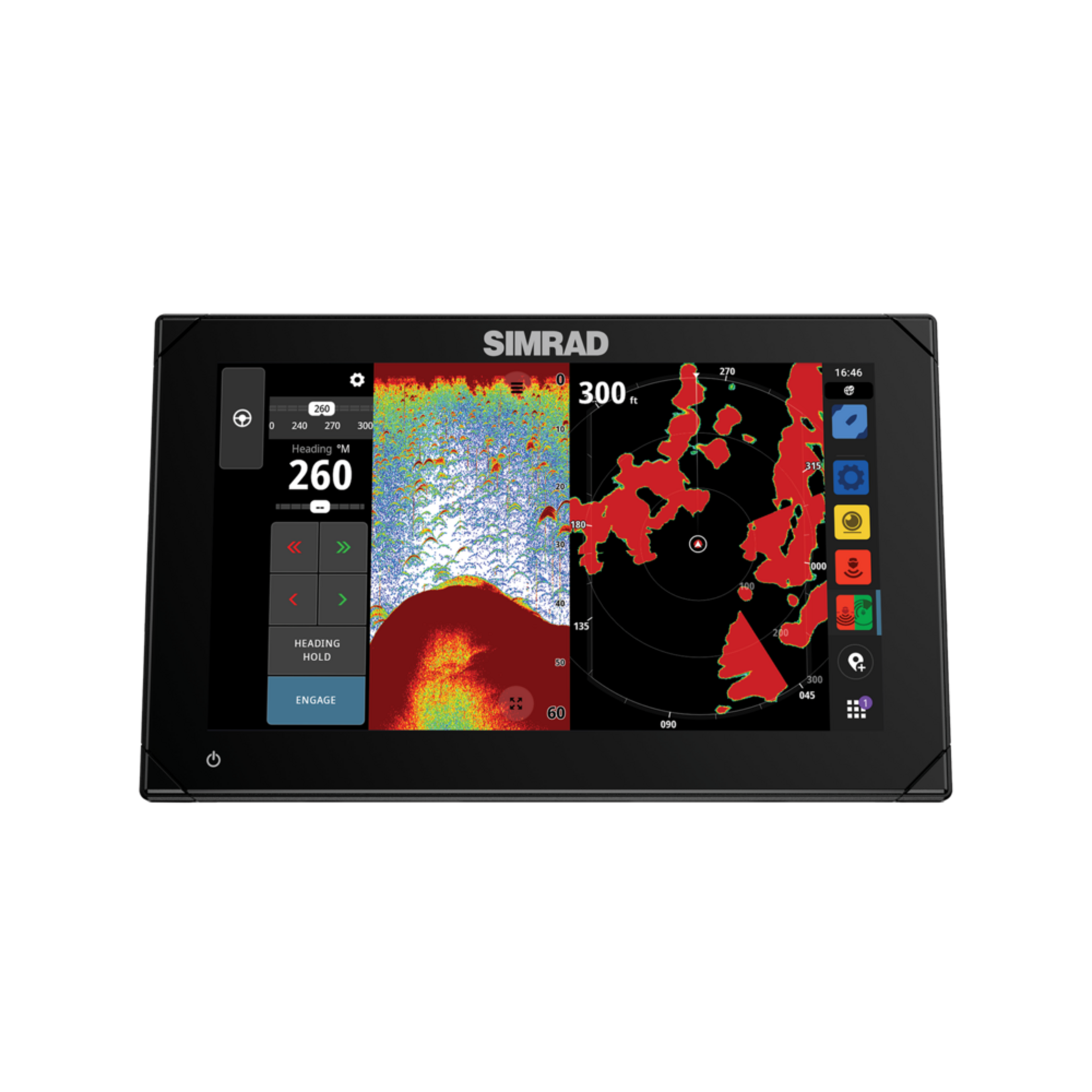

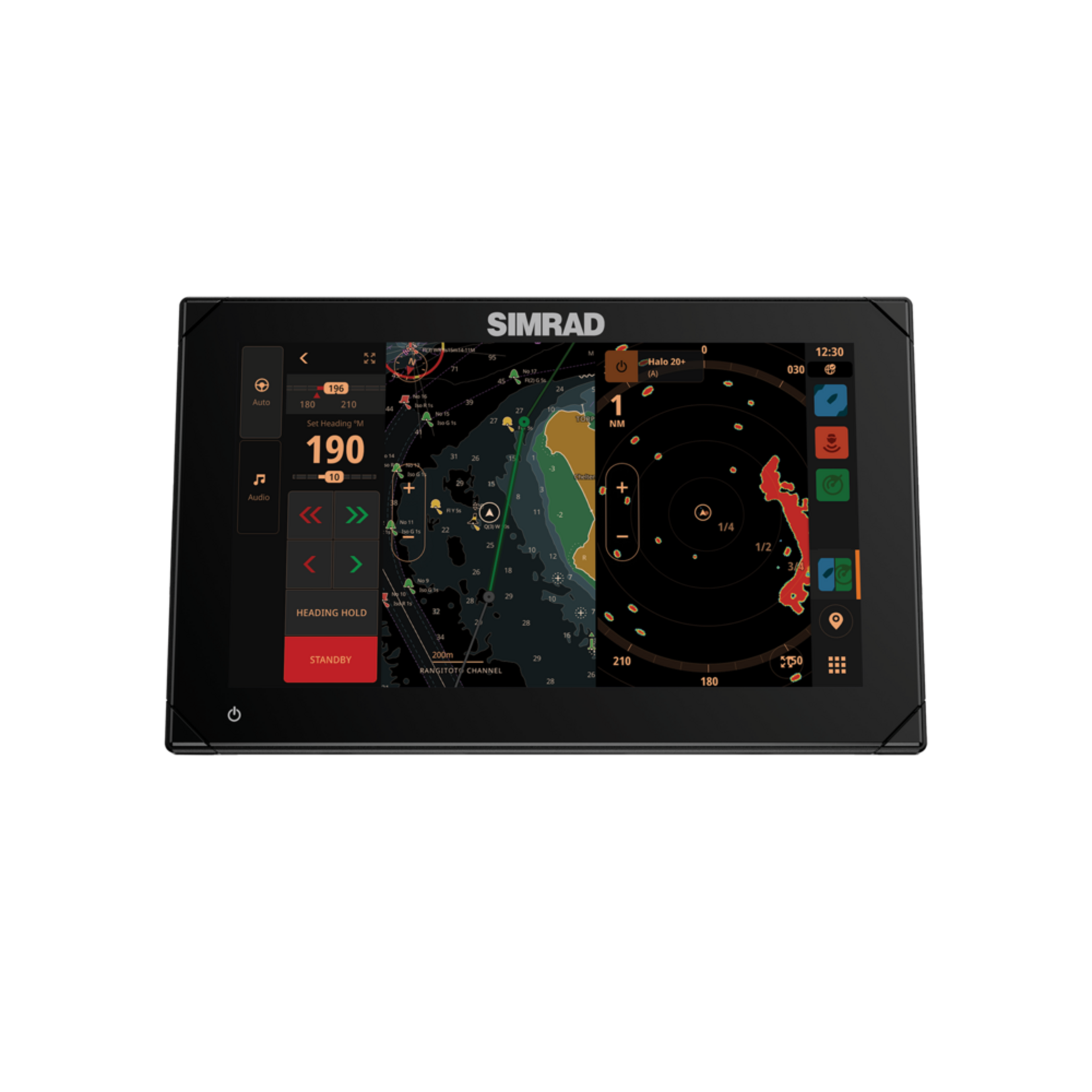

The high-contrast SolarMAX IPS touchscreen ensures excellent visibility from any angle, even in direct sunlight and when wearing polarized sunglasses. Its compact footprint combined with a generous screen size makes the NSX 3009 ideal for mid-size center consoles and dayboats.
Using the Simrad Companion App, routes, tracks and waypoints can be planned at home and synchronized directly to the chartplotter.
The Simrad NSX 3009 offers a future-ready navigation solution with flexibility, clarity and proven reliability. Available from Nauticsale, your trusted marine electronics specialist.
Order now from Nauticsale for fast delivery and expert advice.
Key features & options
- 9-inch Simrad NSX multifunction chartplotter
- SolarMAX IPS touchscreen for all-weather visibility
- Full integration with Simrad radar, sonar and autopilot

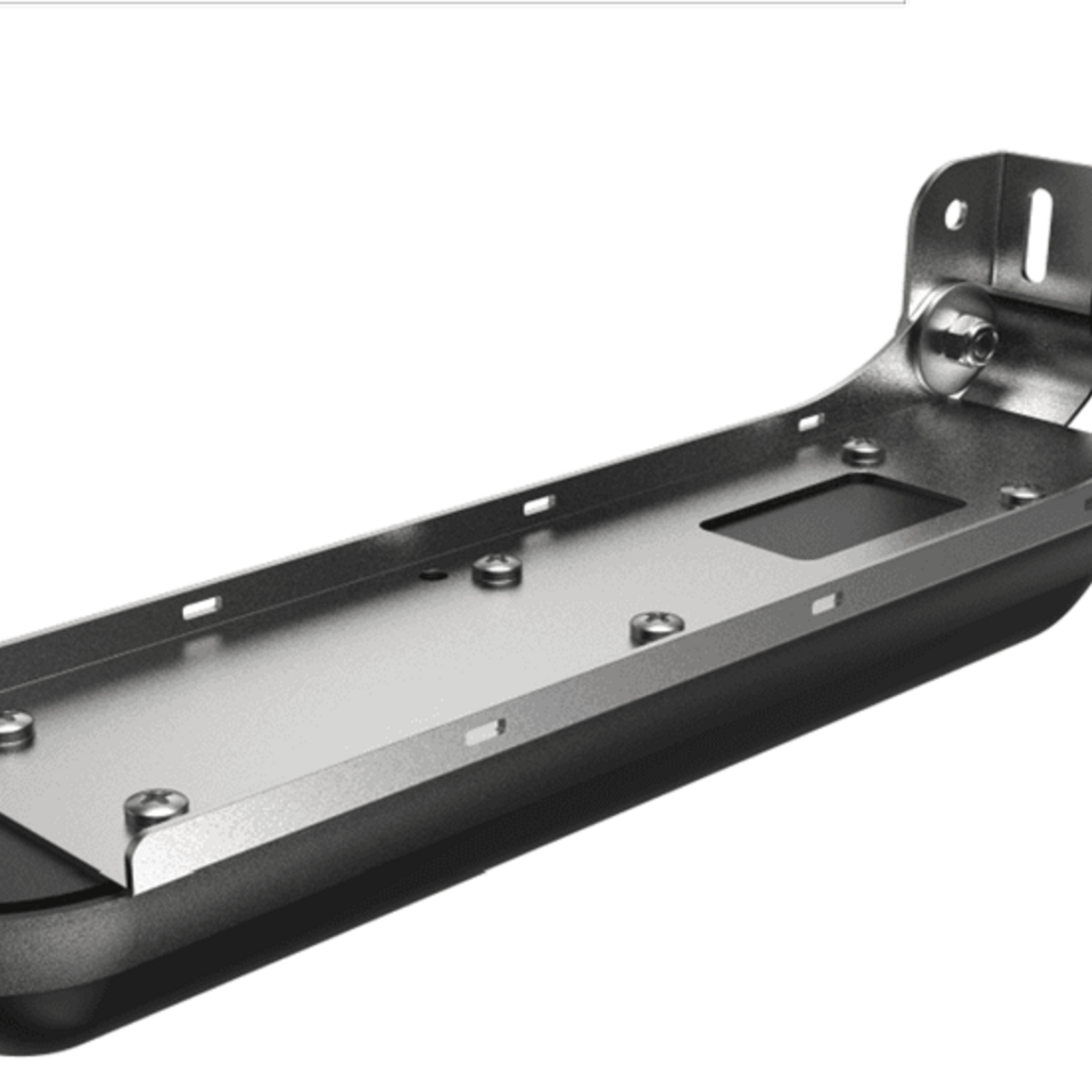

- Active Imaging 3-in-1 transducer included
- Sonar sharing across Simrad MFDs
- Support for external sonar modules (StructureScan, S3100, S5100)
- Mercury® engine integration via SmartCraft® Connect
- Simrad Companion App support
- Compact design with large display area
Box contents
- Simrad NSX 3009 display
- Active Imaging 3-in-1 Transducer (000-14489-001)
- 9" mounting bracket EVO3 / Zeus³ / NSX / GO (000-13702-001)
- Dashboard mount kit NSX 3009 (000-15824-001)
- NSX 3009 suncover (000-15817-001)
- Standard 4-pin power cable (000-00128-001)
