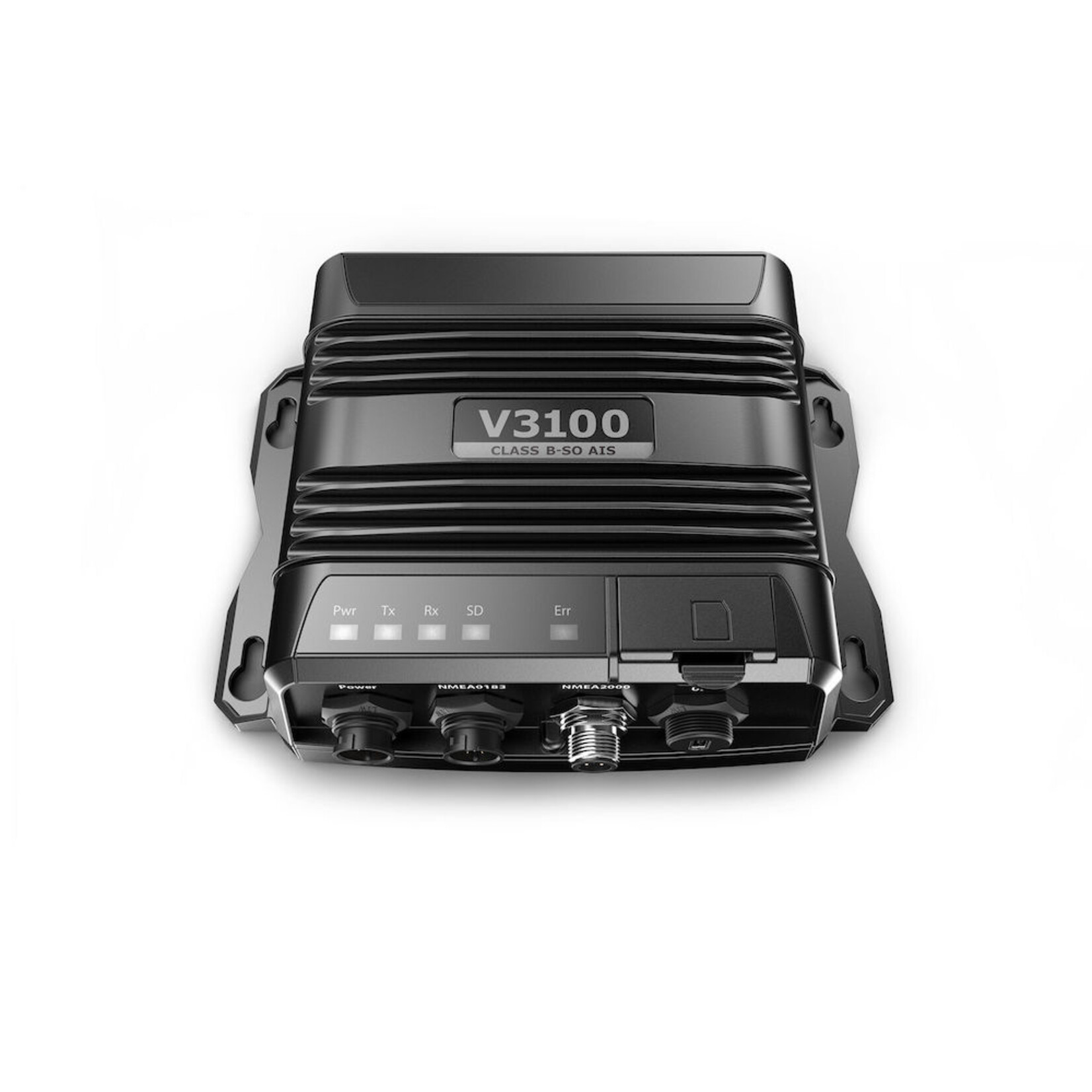

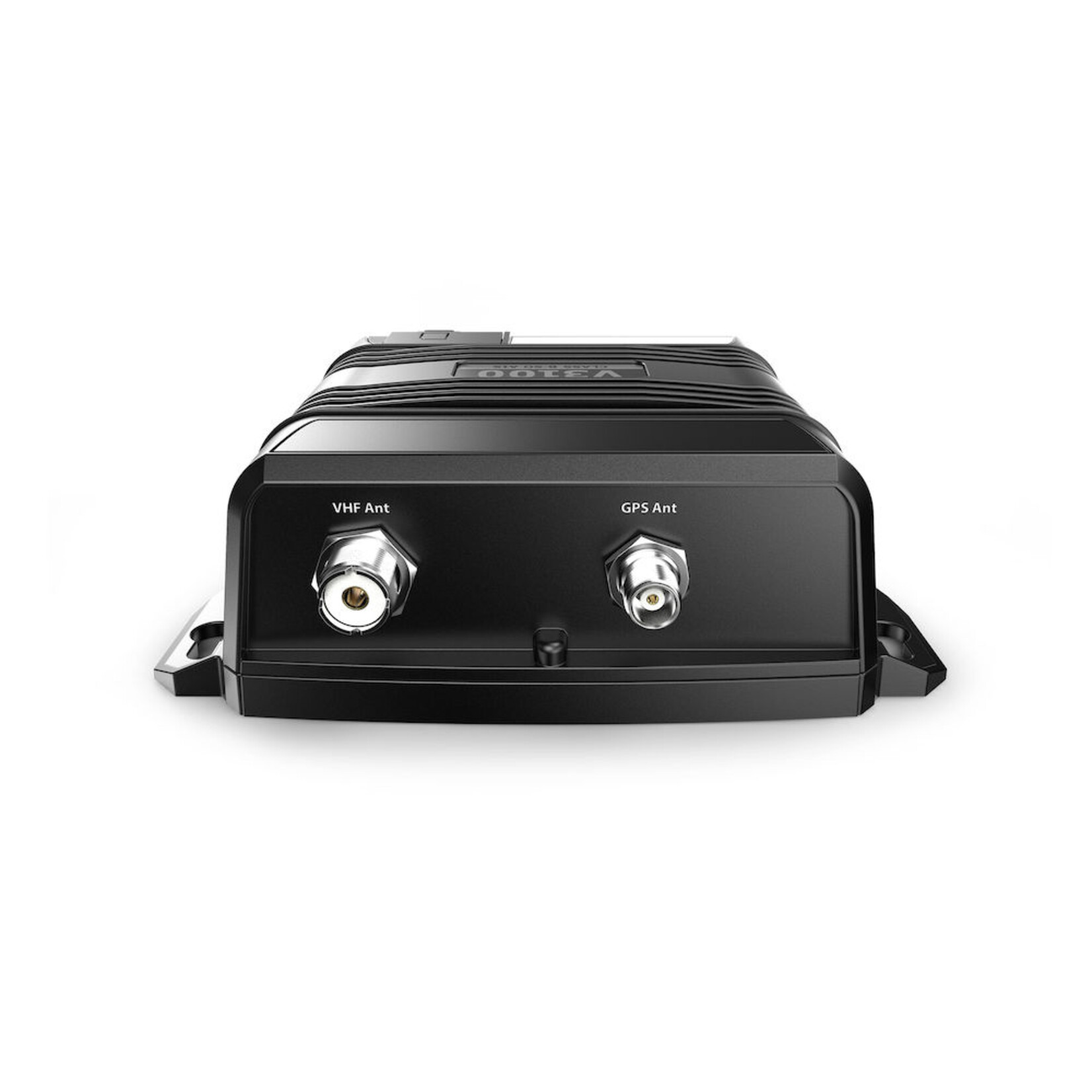

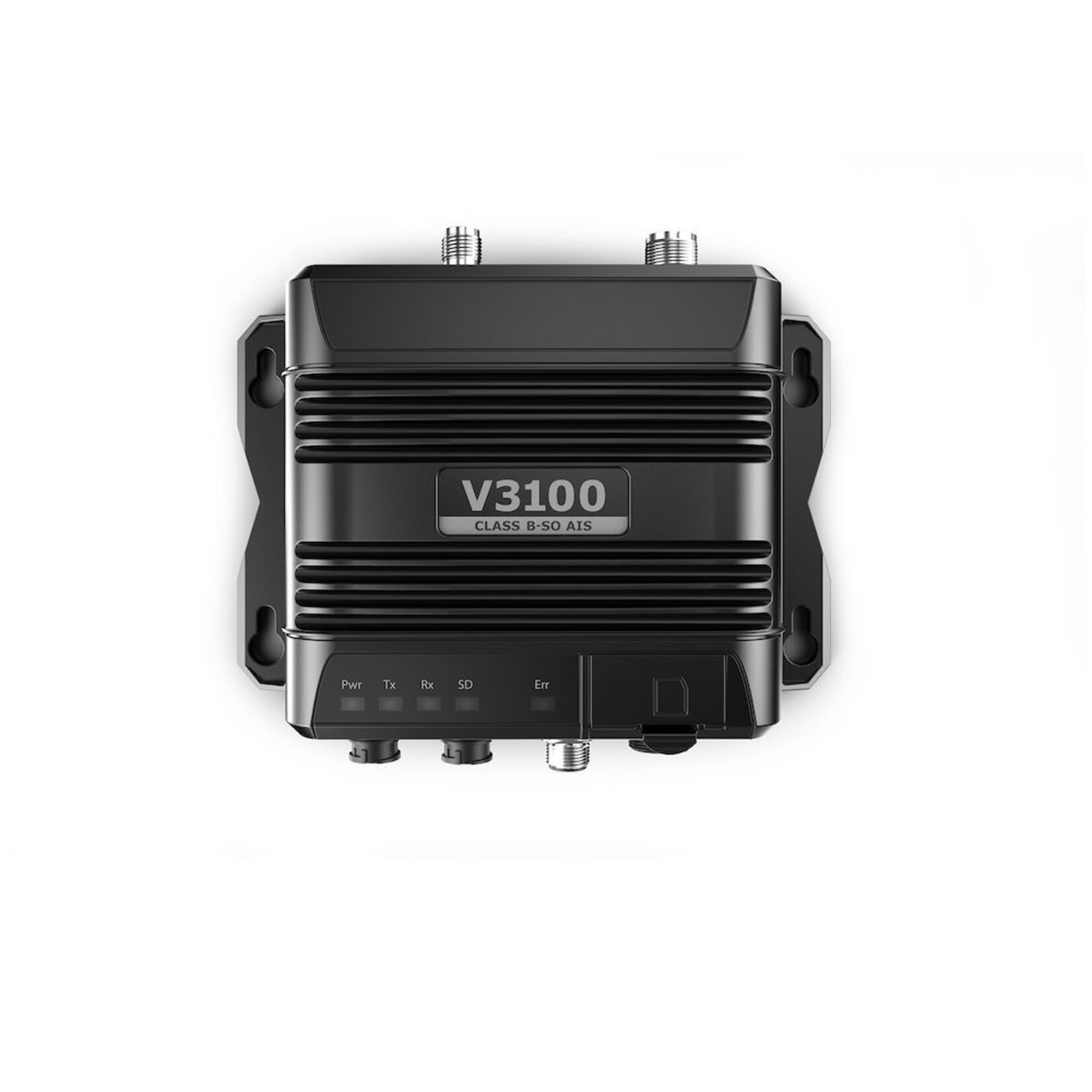

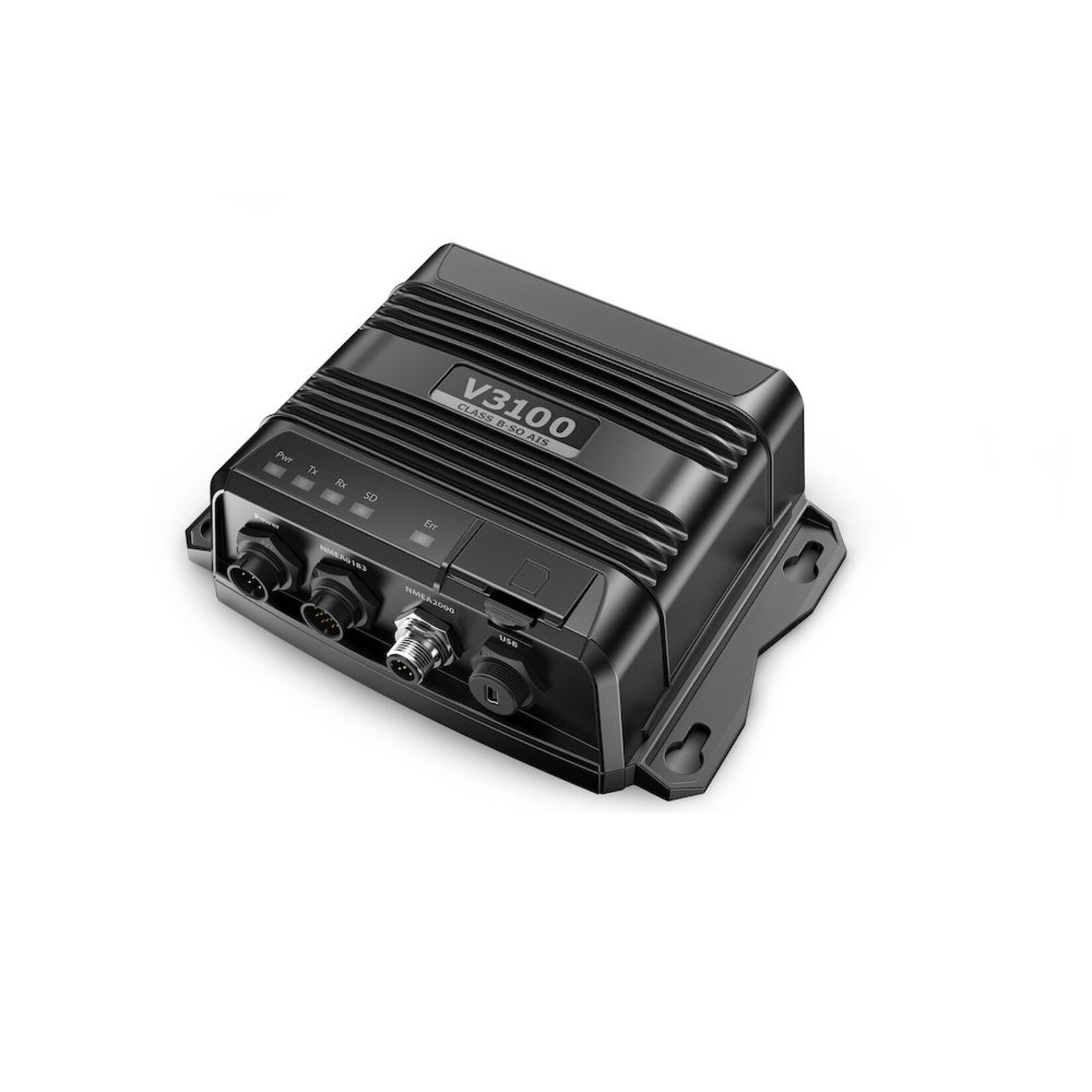

The V3100 SOTDMA Class B AIS is designed to provide reliable, frequent position updates in high-traffic areas. Using the same SOTDMA technology as Class A AIS systems, it transmits up to six times more frequently than standard Class B AIS—up to every 5 seconds based on vessel speed.

With 5 Watt transmission power, the V3100 ensures greater range and improved detection by satellite AIS. The waterproof IP67-rated black box integrates seamlessly with B&G or Simrad multifunction displays and is compatible with NMEA 2000®, dual NMEA 0183® and USB output. It also includes an SD card slot for AIS data logging and the GPS-500 external antenna.

Key features:

• 5W Class B AIS using SOTDMA
• Up to 6x more frequent position updates
• Rugged IP67-rated waterproof housing
• GPS-500 included (10 Hz update rate)

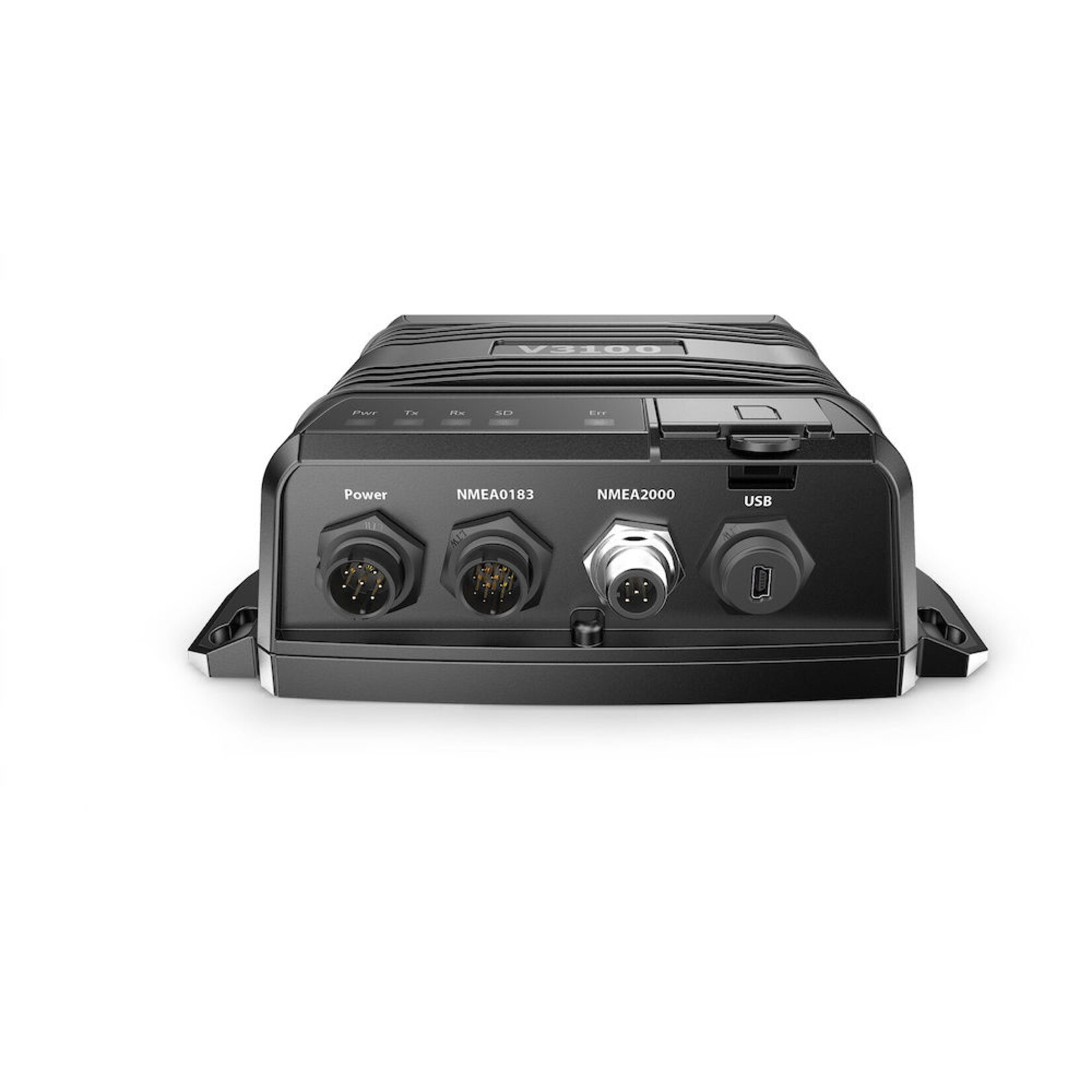

• Interfaces: NMEA 2000®, NMEA 0183®, USB
• SD card logging supported
• Compatible with MFDs and PC navigation software
• Ideal for congested and offshore environments

Includes:

• V3100 AIS transponder

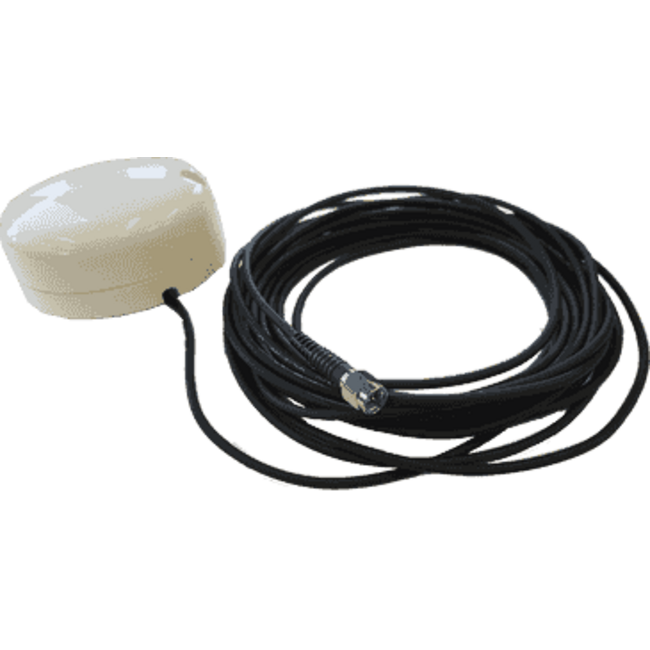

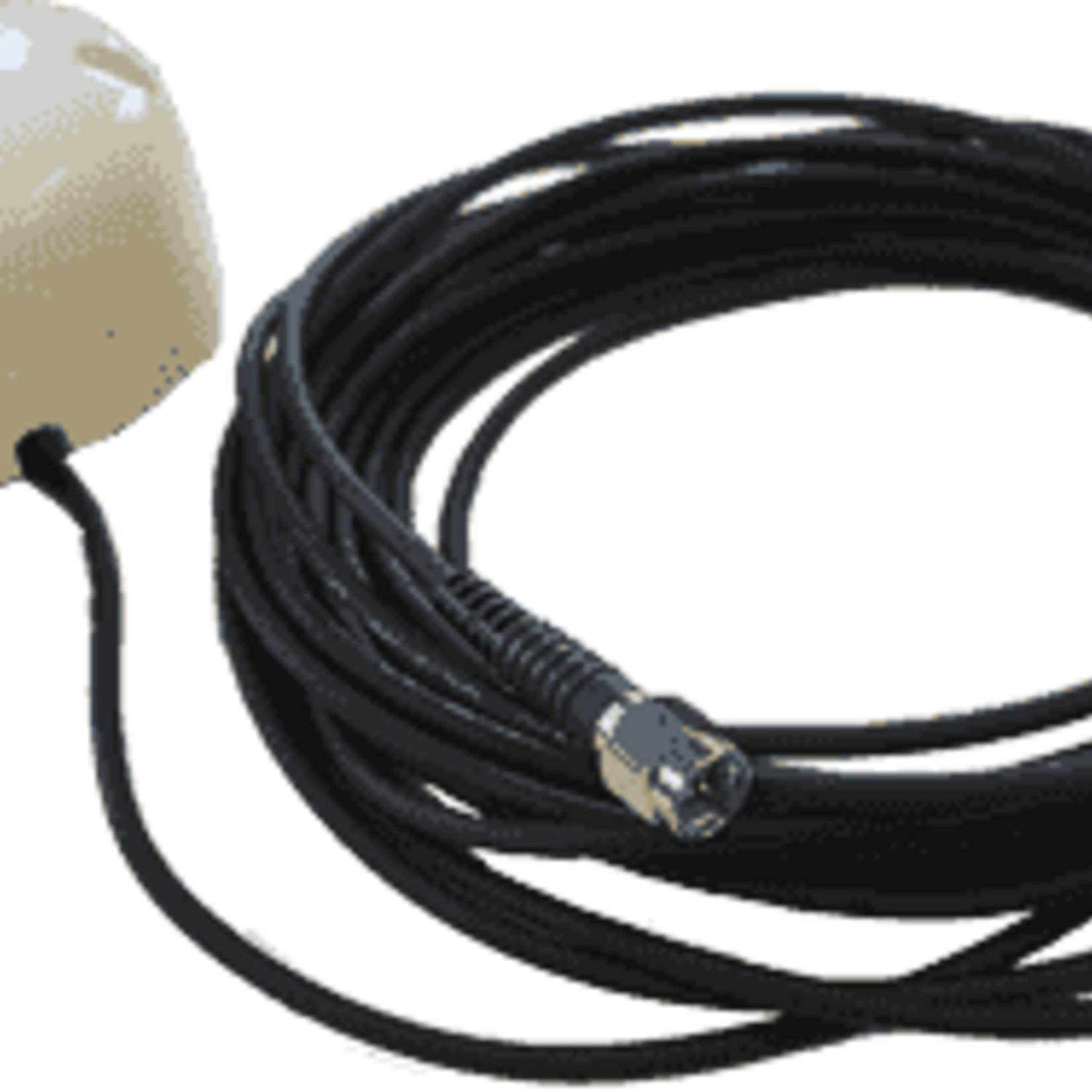

• GPS-500 antenna
• Installation guide and cables
