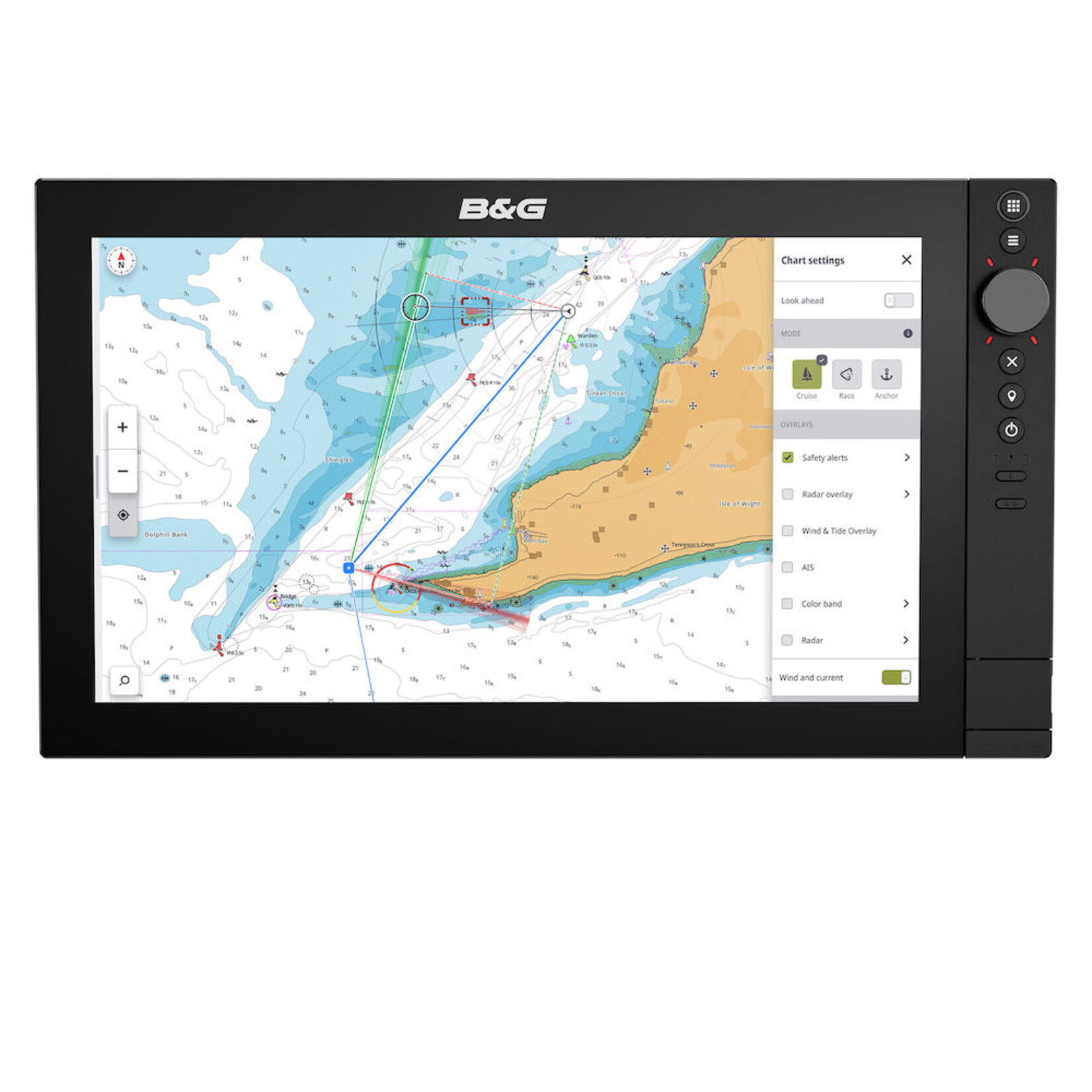

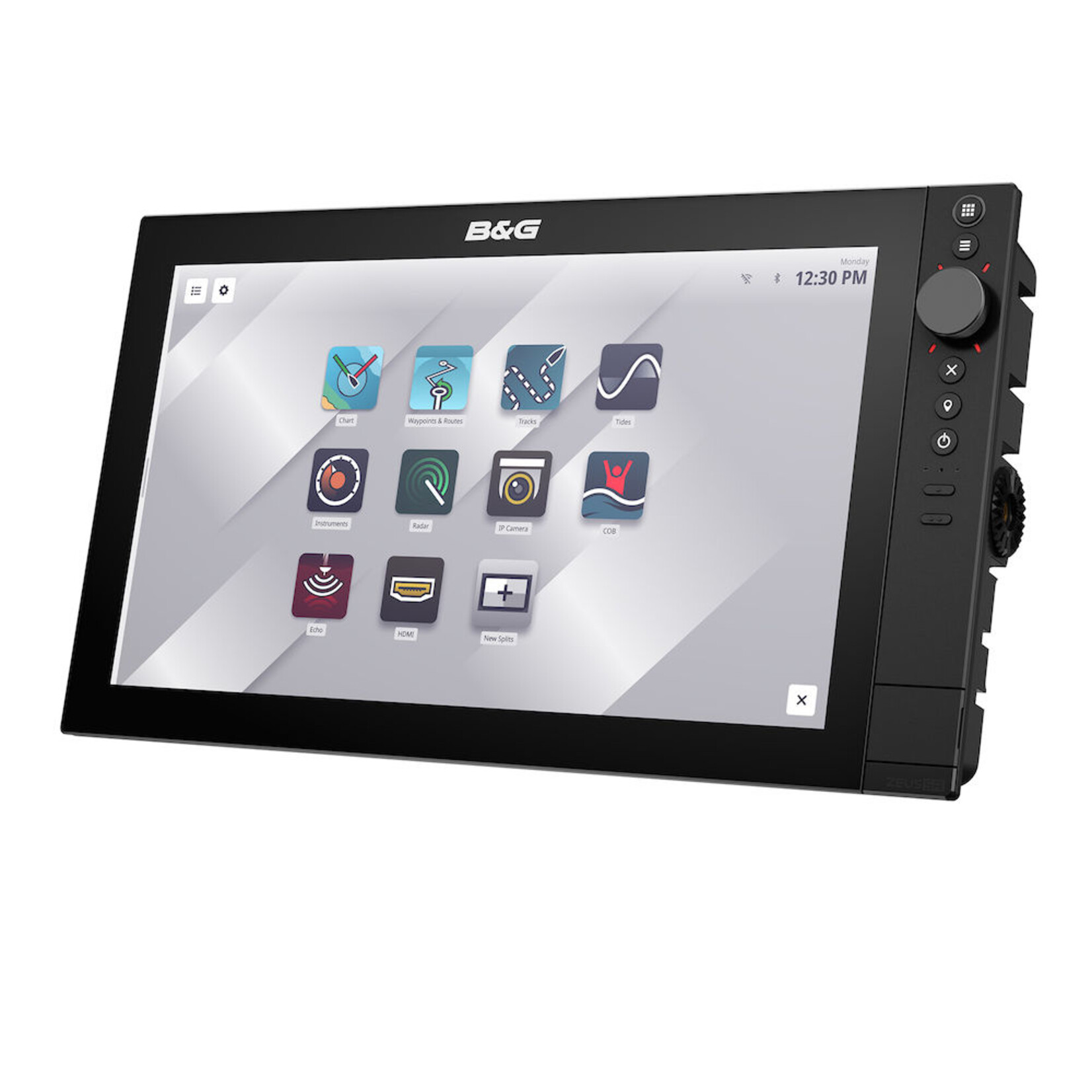

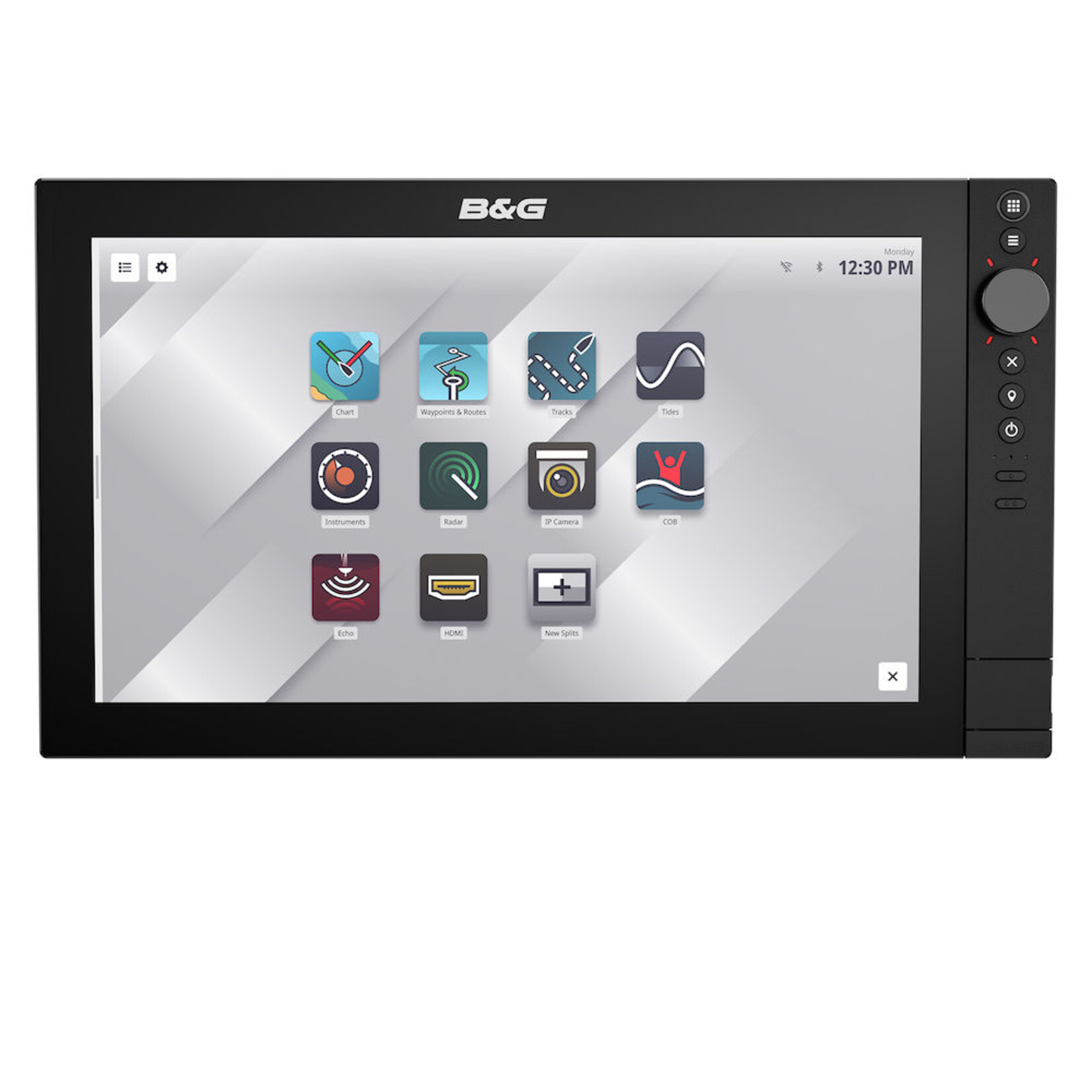

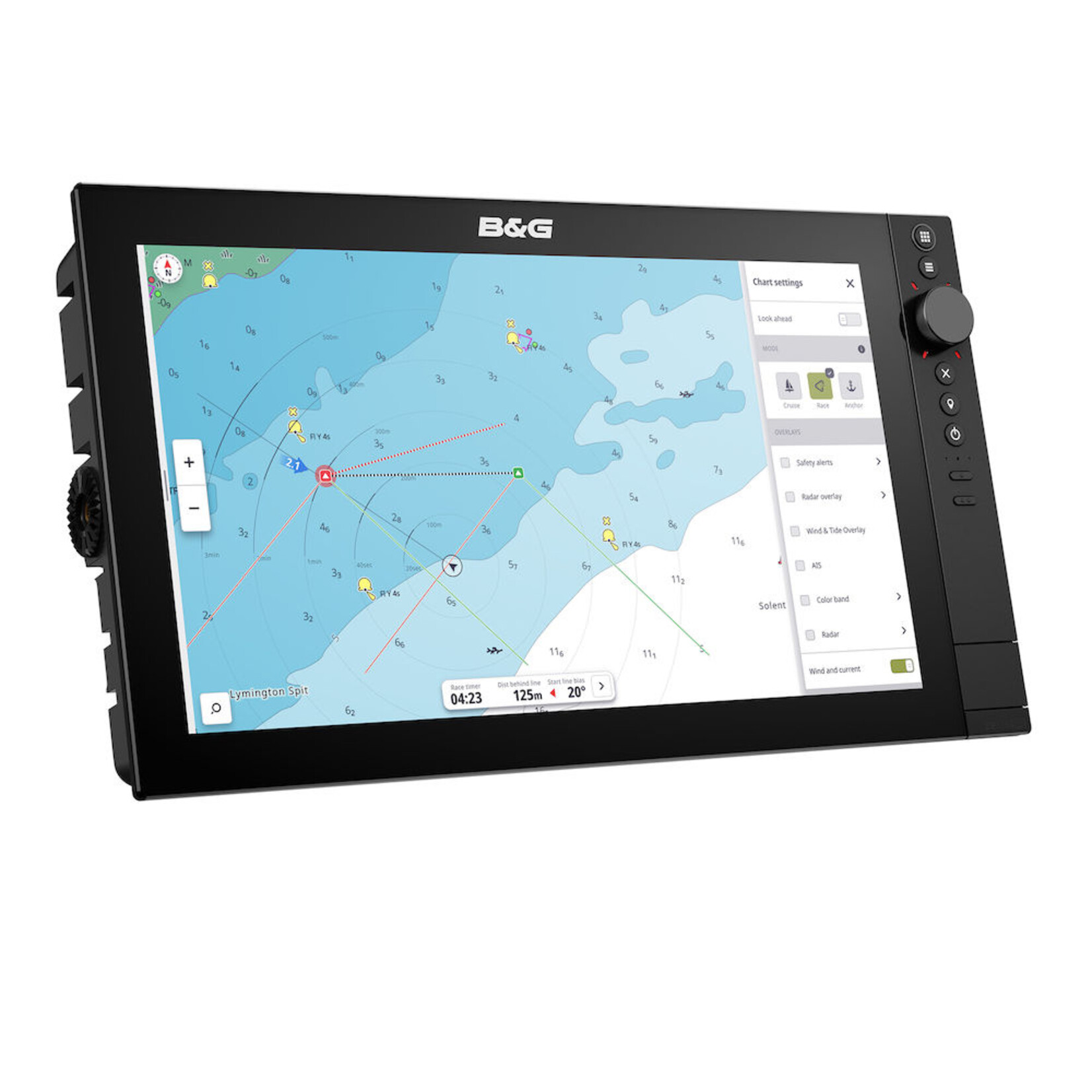

The B&G Zeus SR-16 (part number 000-16028-001) is the flagship model in the SR series, featuring a large 16-inch SolarMAX™ IPS display with Full HD resolution (1920 x 1080 px). With a brightness of >1200 nits and wide 80° viewing angles, it ensures superior visibility in all lighting conditions – even in bright sunlight.

Powered by a Qualcomm® 8-core processor, the Zeus SR-16 delivers outstanding performance with smooth chart rendering, fast zooming, and instant access to all functions. Control is fully multi-touch, complemented by keypad and rotary dial operation for maximum flexibility.

The integrated 10 Hz GNSS receiver supports GPS, GLONASS, Galileo, Beidou, and QZSS with SBAS corrections (WAAS), ensuring accurate positioning. Connectivity includes Wi-Fi 5, Gigabit Ethernet (M12 GbE + 5-pin), NMEA 2000®, USB, HDMI input, Video Out, and dual microSD slots.

Designed for the harshest marine environments, the Zeus SR-16 features IPX6/IPX7 waterproofing, resistance to shock and vibration, and an operating temperature range from -15°C to 55°C.

Key features:

• 16” SolarMAX™ high-definition IPS display (>1200 nits)
• Full HD 1920 x 1080 px resolution
• Qualcomm® 8-core processor
• Multi-touch + keypad/rotary dial controls
• 10 Hz GNSS (GPS, GLONASS, Galileo, Beidou, QZSS, SBAS)
• Wi-Fi 5 (IEEE 802.11ax)
• Ethernet: 1x M12 GbE + 1x 5-pin
• NMEA 2000® (Micro-C connector)
• 2x microSD slots + USB + HDMI input + Video Out
• IPX6/IPX7 waterproof, -15°C to 55°C
• Weight 3.8 kg (without bracket)
• Includes World Basemap
• Compatible with C-MAP DISCOVER™ X and REVEAL™ X charts

The Zeus SR-16 combines maximum screen size with unmatched performance for the most demanding sailors. Order now from Nauticsale for fast delivery and expert advice.
