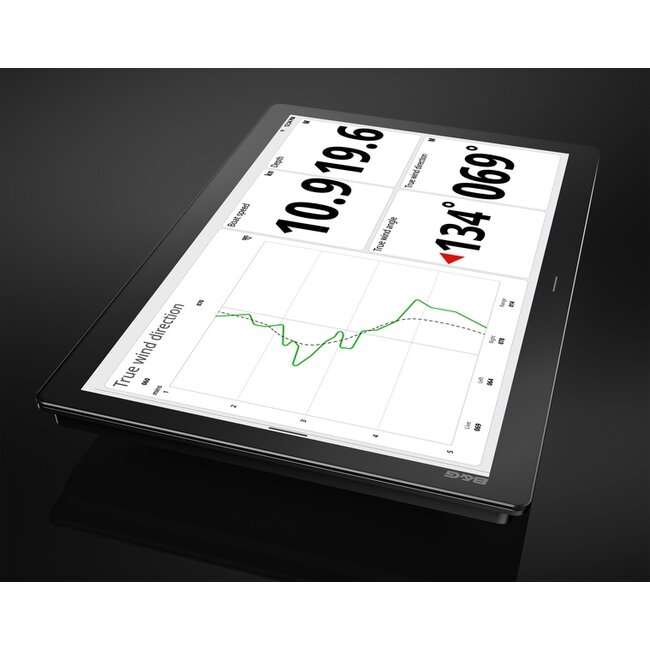

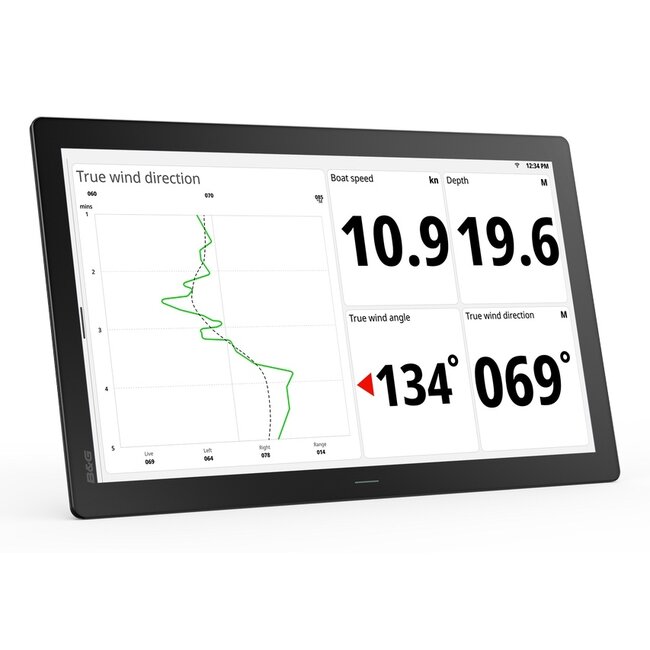

The B&G Zeus® SRX 16” multifunction sailing chartplotter combines a Full HD SolarMAX™ IPS touchscreen (1920 x 1080) with NEON® OS and a Qualcomm 8155 8-core processor.
The display delivers 1200 nits brightness for sunlight visibility and is suitable for use with polarized sunglasses. Active cooling supports reliable performance in high ambient temperatures.
Premium Helm Fit & Finish
- Edge-to-edge glass with rounded corners
- Subtle branding and minimal design
- Patented tool-less rear mount system (pre-installed)
- Twist-fit, lockable waterproof connectors
The rear mount system allows installation without tools using a push-twist-tighten mechanism, reducing installation time and complexity.
NEON® OS Performance
- Up to 35% faster boot (vs Zeus® 3S Glass Helm)
- Instantaneous chart redraw
- Fast page transitions
- Vessel-to-Point Auto Routing
- Up to 10x faster Auto Routing
Seamless System Integration
The Zeus SRX 16” functions as the control center of a connected sailing yacht and supports:
- B&G autopilots (NAC-1, NAC-2, NAC-3, NAC-D)
- HALO radar
- NMEA 2000 networks (NMEA 0183 via adapter)
- CZONE digital switching (full screen app)
- Up to 12 NEON displays in multi-helm configurations
- Up to 4 IP cameras simultaneously
High-definition Video In & Out (1080p) with built-in audio splitter is supported.

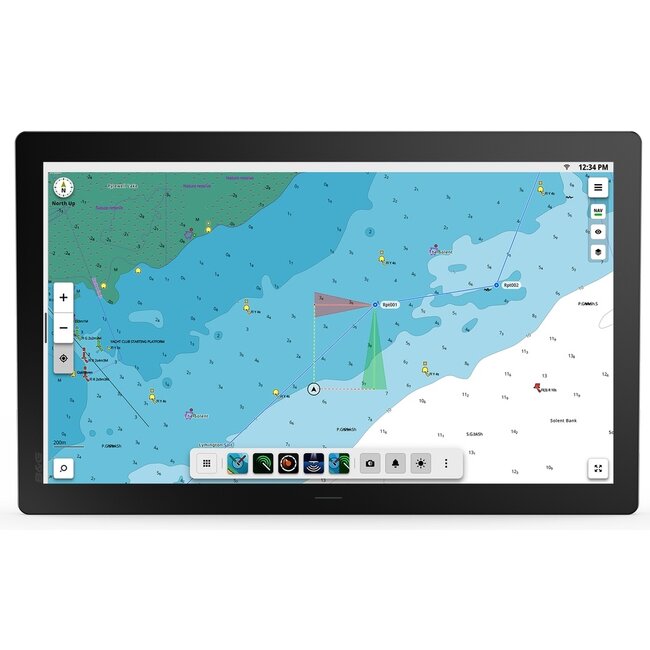

Chart & Navigation Support
- C-MAP® DISCOVER® X
- C-MAP® REVEAL® X
- C-MAP Safety Alerts
- Wireless updates via X Chart Manager
- 10,000 waypoints
- 125 routes
- 75 tracks
External GPS antenna required (NMEA 2000).
HS75 GPS Compass
ZG100 GPS Antenna
Connections
- 4x M12 Gigabit Ethernet
- Dual SD card slots (up to 256GB, Class 10 or higher)
- USB
- Video In / Video Out
- NMEA 2000
- 12/24V DC power
Key Technical Specifications
- Display: 16” IPS Full HD
- Resolution: 1920 x 1080
- Brightness: 1200 nits
- Processor: Qualcomm 8155 8-Core
- Internal storage: 128GB
- Power consumption: 33W
- Dimensions: 391 x 244 mm
- Weight: 4.23 kg
- Operating temp: -15°C to 55°C
What’s in the Box
- Zeus SRX 16” MFD
- Magnetic sun cover
- Rear mount kit and dash gasket
- Power cable
- Documentation pack
