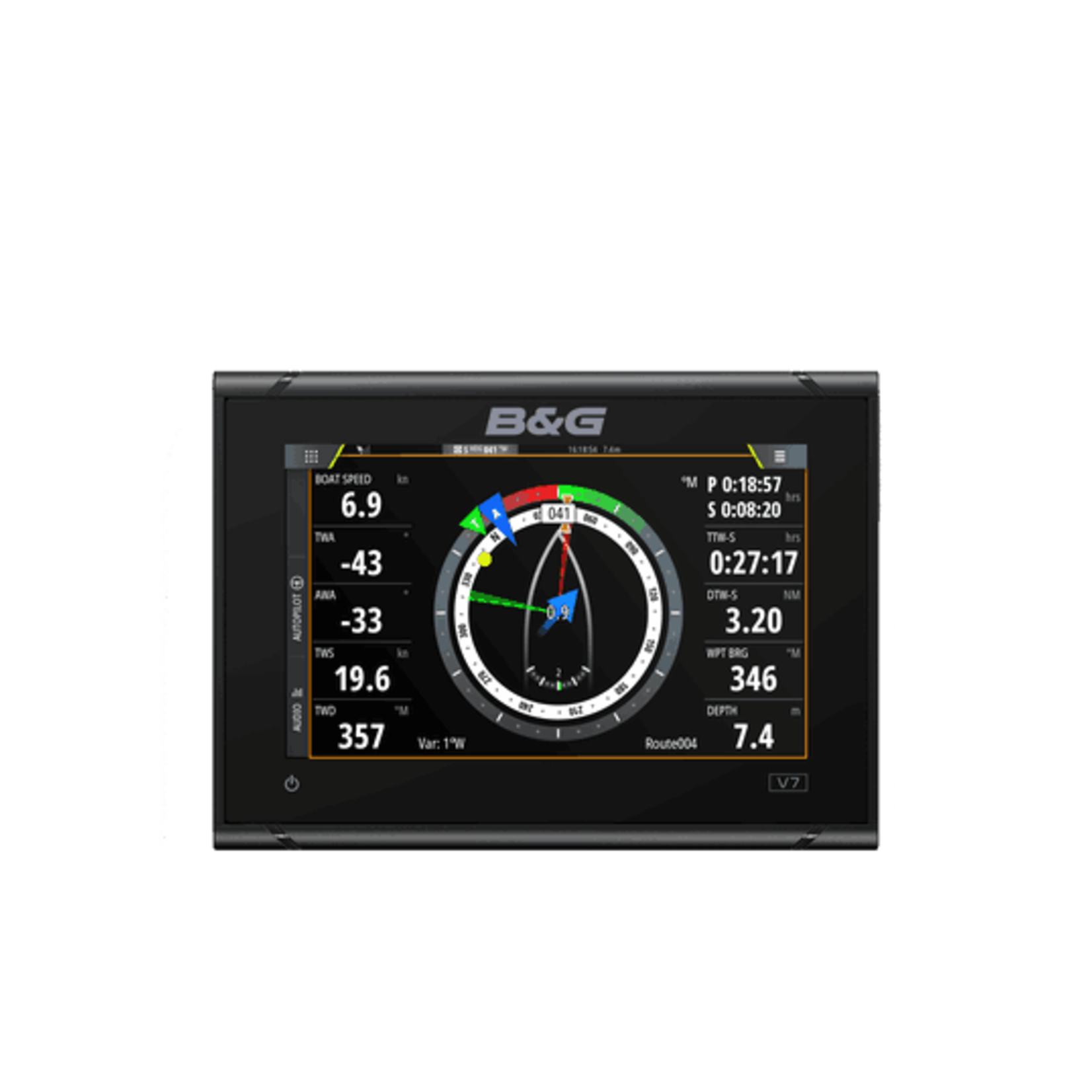

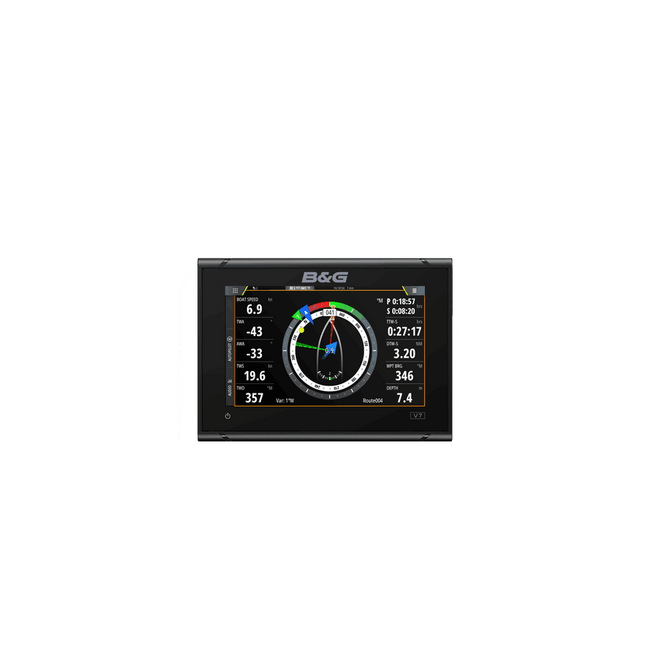

B&G Vulcan 7R (part number 000-14082-001)
The B&G Vulcan 7R is a compact yet powerful 7-inch chartplotter, specifically designed for sailors. With its SolarMAX™ TFT color display and brightness of 1200 nits, the Vulcan 7R delivers excellent readability even in bright sunlight and from all viewing angles (80° left/right and up/down).

The Vulcan 7R is equipped with an internal GPS (10 Hz) that ensures precise positioning and supports satellite systems such as GLONASS, Galileo, and BeiDou. Thanks to the built-in WiFi and Bluetooth, you can easily connect to apps and perform updates.

In addition, the Vulcan 7R offers full compatibility with B&G HALO® radar and Broadband/HD radars, making it a complete radar display. The unit features integrated sonar functions with CHIRP, DownScan, and ForwardScan (via 9-pin Xsonic connector) and can also be integrated into a NMEA 2000® network.

For maritime safety, the unit can receive AIS data via NMEA 2000® and export NMEA 0183 data over WiFi. The rugged housing is built for intensive use at sea and complies with IPX6/IPX7 waterproof standards. With a nominal power consumption of only 12 W, the system is energy-efficient and ideal for smaller yachts and sailing boats.

Key Features

• 7” SolarMAX™ TFT color display, 1200 nits brightness
• Resolution 800 x 480 px
• Built-in GPS receiver (10 Hz) with support for GLONASS, Galileo, BeiDou
• Integrated WiFi and Bluetooth
• Radar compatibility: HALO®, Broadband, and HD
• Integrated sonar (CHIRP, DownScan, ForwardScan via 9-pin)
• NMEA 2000® compatible, AIS data reception
• 1x microSD slot, expandable up to 32GB
• Energy efficient: 12 W nominal, 20 W max.
• IPX6/IPX7 waterproof rating
• Includes World Basemap

With the B&G Vulcan 7R you benefit from compact power and versatility.
Order now at Nauticsale for fast delivery and expert advice.

Vulcan Series Installation Manual (en-us)

Vulcan Series Operator Manual (en-us)
